2016 Barebone 4 Lan J1900 Router Quad Core Mini PC Linux Fanless,X86 apply to router, firewall, proxy, Linux Mini PC pfSense

Product Description

Dimension	156*128*37mm(L*H*W)/156*128*48mm(L*H*W) (Optional)
Weight	0.6Kg (Reference)
Power Consumption	10W
Onboard CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Memory	Support DDR3 1333/1600 MHz 1.35V 1 x DDR3 DIMM Memory Slot Max. Supports up to 8GB Memory
Chipset	Intel Soc Chipset
Hard Disk	supports mSATA SSD supports 2.5 HDD ( optional )
Onboard VGA	Intel HD Graphics
Onboard LAN	4* Intel I211AT - 10/100/1000 Controller
Front-Panel Connectors	• power on/off • Power LED • 3 x USB 2.0 Ports • 1 x USB 3.0 Port • 1 x VGA Port
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module,only for USB singal) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x RS232 header (optional) • 1 x SIM Card slot (optional)
Back-Panel Connectors	• 1 × DV 12V input • Power LED,HDD LED • 4 x RJ-45 Ports • WIFI  (option only for USB singal)
Operating System	Support Windows 7 /8 / Windows 10 /Linux etc(can't support windows XP).

Configuration for Selection:

Memory	2G, 4G , 8G DDR3 RAM
Hard Disk	8G/16G/24G/32G/64G/128G/256G/512G Msata SSD or 500G/1Tb 2.5" HDD(Optional)
WIFI	Optional

Quotation What size Memory and Hard Disk do you need? Please choose Memory, Hard disk and contact Cherry Ni to get the latest price.
Qotom-Q190G4 MINI PC

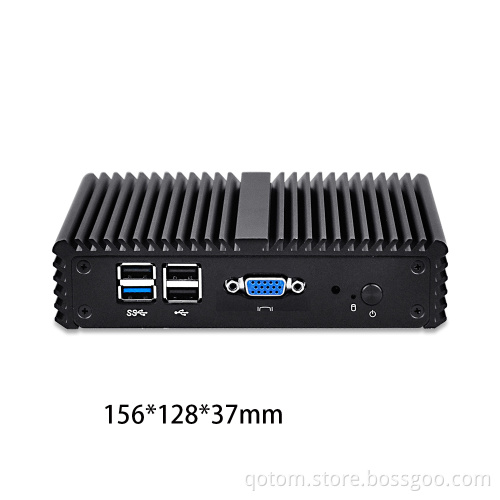

Palm Size: 156*128*37mm(L*H*W) Material: aluminium alloy ,Metal wire drawing process.
Weight: 2.0kg (WITH PACKAGE)
For Q190G4, you will get the mini pc with:
4*RJ-45 LAN +3*USB2.0 +1*USB3.0+ 1* VGA + 1*DV 12V DC INPUT

1)Great reliability
With the adoption of the J1900 ultra power consumption processor and switching mode power supply, Q190G4  can provide stable, sufficient and efficient power. The stability of the Q190G4N is further guaranteed with the switching mode of power supply applied in memory, too. All of the external devices of the motherboard is composed of some anti-static and jam-proof components which ensured the operation of a stable and efficient system.

2)Working Condition
Working Temperature：-10℃～50℃
Working Humidity：5%～95%（Non-gel）
Fanless, zero noise, cheap, small, with four Intel Gigabit ethernet interfaces, Mini PC Q190G4 is a perfect fit for pfSense or advanced Firewall / Router distros. The construction is nice and compact, rock solid.  You can install your favorite Operating System and software package to Build Your Own Firewall / Router.




VESA bracket It comes with a VESA mounting kit so that you can put it on the backside of a monitor to save space. WIFI If you order WIFI, the package box will include 2 pcs antennas. Related Products Application Field 1,It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer. 2,This Mini Pc can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security Our Company With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.
Contact Us Packing & Delivery
What's in the Package box?
1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 3A Power adapter and power plug.
There are 4 kinds of plug: European standard / British standard / Australian standard / American standard)

Delivery 1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
PAYMENT 1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY 1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.
Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !
Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
