3 Display 2 Lan Mini Pc Q410P with Processor 3215U (2M Cache, 1.70 GHz, Broadwell) ,apply to POS systerm, proxy, Pc Router

Product Description

Dimension	156*128*48mm(L*H*W)
Packaging dimension:	260*230*70mm
	1.5Kg ( Reference )
Power Consumption	15W
Onboard CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
	Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot Max. Supports up to 8GB Memory
Hard Disk	- support MSATA (M.2 )SSD and 2.5 inch SATA HDD
Onboard VGA	Intel HD Graphics
Onboard LAN	2 * Realtek 8111E 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • Power LED • 1 x COM port • 2 x USB 2.0 Ports • 2 x USB 3.0 Ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOTH) • 1 x Minipcie port (for 3G/4G Module) • 1 x DDR3 DIMM Memory Slot • 1 x GPIO header • 1 x SIM card Slot • 1 x SATA Port • 1 x SATA power header • 1 x Front panel header • 1 x Front panel audio header • 1 x Front panel USB header • 1 x Automatically boot jumper

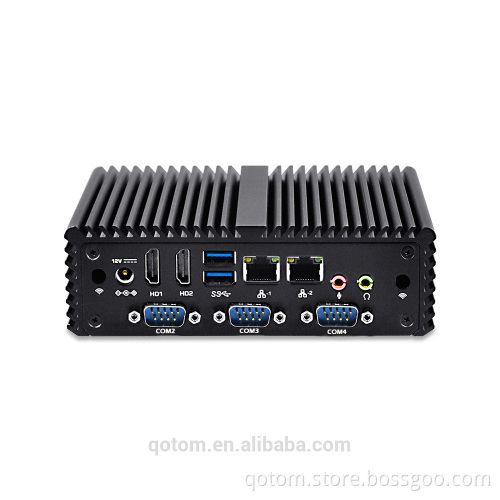

Back-Panel Connectors	• 1×DV 12V DC input • 2 x HD Video Connectors • 2 x RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 3 × COM ports
Operating System	Support Windows 7 / Windows 8 / 10 / Linux .etc

Configuration for Selection:

Memory	2G, 4G , 8G DDR3 RAM
Hard Disk	8G/16G/24G/32G/64G/128G/256G/512G Msata SSD   500G/1Tb 2.5“ HDD
WIFI	Optional

Quotation What size Memory and Hard Disk do you need? Please choose Memory, Hard disk and contact Cherry Ni to get the latest price.
Qotom-Q410P MINI PC
Palm Size: 156*128*48mm(L*H*W) Material: aluminium alloy ,Metal wire drawing process.
Weight: 2.0kg (WITH PACKAGE)
For Q410P, you will get the mini pc with:
2*RJ-45 LAN+2*HD Video+1*VGA +2*USB2.0 +4*USB3.0+1*COM+ 1*DC 12V DC INPUT

1)Great reliability
With the adoption of the 3215U ultra power consumption processor and switching mode power supply, Q410P  can provide stable, sufficient and efficient power. The stability of the Q410P is further guaranteed with the switching mode of power supply applied in memory, too. All of the external devices of the motherboard is composed of some anti-static and jam-proof components which ensured the operation of a stable and efficient system.

2)Working Condition
Working Temperature：-10℃～50℃
Working Humidity：5%～95%（Non-gel）





VESA bracket It comes with a VESA mounting kit so that you can put it on the backside of a monitor to save space. WIFI If you order WIFI, the package box will include 2 pcs antennas. Related Products Application Field This Mini Pc can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security
It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.
Our Company With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.
Contact Us Packing & Delivery
What's in the Package box?
1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 3A Power adapter and power plug.
There are 4 kinds of plug: European standard / British standard / Australian standard / American standard)

Delivery 1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
PAYMENT 1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY 1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.
Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !
Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
Q6: What mode of transport you can choose?
A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.

Q7: How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.

Q8: Will it be very hot since the mini computer CPU is fan-less?
A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.

Q9: Possible using 220v AC power?
A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?
A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
