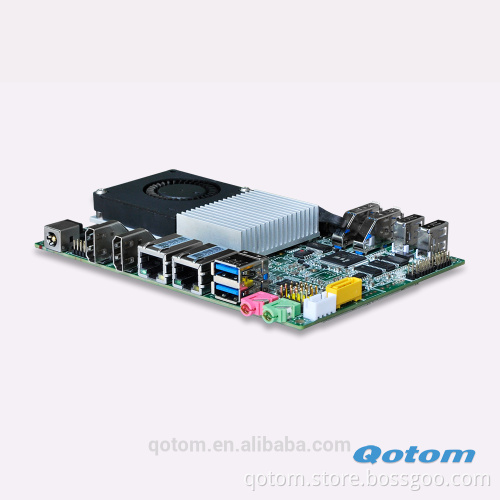

Intel Core I5-4200U Mini ITX board 2 Lan, 3 Display, 6 COM 15 W HD4400 smart mini pc board

Product Description

TYPE	Description
Mechanical standard	3.5" Industrial Motherboard
	148mm x 104mm
Processor	Intel Core i5 4200U Processor (3M Cache, 2.6 GHz, Haswell)
	With up to 15 W TDP
BIOS	AMI BIOS
	64MBit BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
	Support DDR3L 1600 MHz SO-DIMM 1.35V
	Support 8GB Max
Graphics	Intel HD Graphics 4400
	Display: VGA / HD Video Three Display
	* 2 x HD Video (port), 1 x VGA (header)
LAN	2 x Intel I211-AT 1000M
Audio	Realtek ALC662 HD Audio Decoding controller
	6 Channel Audio output
	Line out + MIC IN Port
COM	6 x COM port ( RS485 optional )
USB	2 x On-board USB 2.0
	4 x On-board USB 3.0
	2 x Pin interface USB 2.0
	1 x SATA 3.0 (6Gb/s)
	1 x Mini PCIE port
Expansion Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD )
	1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth )
	1 x SIM port (optional)
	1 x SATA power connector
	1 x SATA 3.0 connector (6Gb/s)
	1 x DDR3 SO-DIMM socket
	1 x Front panel header
	6 x Serial port headers ( RS485 optional )
	1 x D-sub header
	1 x GPIO header
	1 x Automatically boot jumper
	2 x USB 2.0 header
	1 x Audio header
Front Panel	1 x Push button for Power ON/OFF
	1 x Power LED
	1 x HDD LED
	2 x USB 3.0 ports
	2 x USB 2.0 ports
Black Panel	1 x DC in connector
	2 x HD Video Connectors
	2 x RJ45 1000M ports
	2 x USB 3.0 Ports
	1 x Mic in port
	1 x Speaker out port
Power Supply	DC 12V
Working condition	Operation Temperature -10º-50ºC
	Operation Humidity 10%-90% Relative Humidity,
	Non-Condensing
Accessories	Cable for SATA HDD
