OEM/ODM Dual LAN 6 RS232 Ports Thin Client Qotom-Q310P 4G/8G DDR3 RAM Celeron 3215U 1.70 GHz Win 10 Linux Desktop Computer

OEM/ODM  Dual LAN  6 RS232 Ports Thin Client Qotom-Q310P Celeron 3215U  1.70 GHz Win 10 Linux Desktop Computer   Product Description

Specification
Dimension	187*115*52mm(L*H*W) ( Reference )
Weight	2Kg  ( Reference )
Power Consumption	TDP 15W
Onboard CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory	Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot Max. Support up to 8GB Memory
Hard Disk	- support SSD ( MSATA / SATA)  - support HDD (2.5 inch SATA HDD )
Onboard VGA	Intel HD Graphics
Onboard LAN	2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • HDD LED, Power LEDs • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 2 × COM ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x  VGA header • 1 x GPIO header  (optional) • 1 x SIM Card slot (optional)
Back-Panel Connectors	• 1 ×DV 12V DC input • 2 x HD Video Connectors • 2 x Intel RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 4 × COM ports   ( COM 2 can be changed to RS485) • 1 × VGA port  (optional,  If you choose VGA, one of six serial ports will be occupied )
Operating System	Support Windows 7 / Windows 8 / Windows 10 / Linux .etc

    Configuration for Selection:
Memory:      2G/ 4G/ 8G DDR3 RAM

Hard disk:    8G/ 16G/ 32G/ 64G /128G/256G SSD

                   500G/ 1T 2.5" HDD

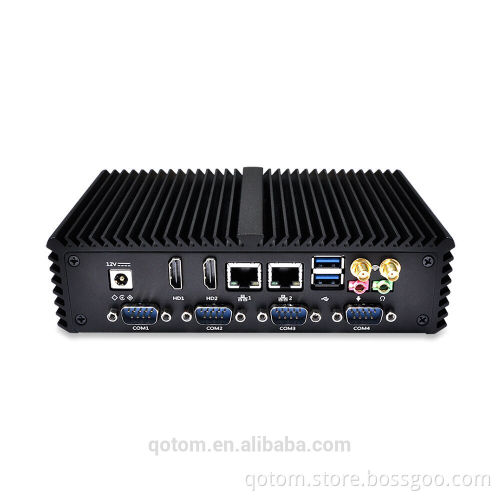

WIFI :  Optional   Product Show Qotom-Q310P MINI PC Size:   187*115*52mm(L*H*W)   Weight: 2kg (WITH PACKAGE)     For Q310P, you will get the mini pc with: 2*USB2.0 + 4*USB3.0 + 2*HD Video  2*RJ-45 LAN + 6* COM + 1*DV 12V DC INPUT                          We can pre-install Operating System for free, but it is unactivated, and it means we do not supply license. Windows 7 / Windows 8 / Ubuntu are options. Pre-install Windows 7 by default. If you prefer other OS, please leave message or contact Cherry Ni.    We can provide OEM service, but the MOQ would be 100 pieces at least.      We provide VESA Mounting bracket for free.   Market positioning:   1 living room HD computer TV in the living room below , as the network after connecting TV movie player , Internet , and viewing photos to use , but also can download machine , download movies ( large capacity drives )   2 business office preferred . Online shopping mall , shop office use, environmentally friendly energy , save electricity . Only 15W power down , corporate offices , saving space. Many advantages , the typical business office committed to make.   3 rooms dedicated computer -aluminum exterior , elegant, upscale . Placed hotel is very convenient , all- solid-state design , not damaged, no dry sound , low power consumption , energy saving.   4 education industry dedicated computer terminal than the low clouds have better performance , easier software compatibility , better color , faster , more suitable for the education sector .   5 industrial computers designed for industrial users reservation and serial port, and the design of the machine , can be fully qualified for industrial applications , all solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users .   6 users call center has a large number of mature applications      Packaging   1* mini pc 1* the holder 2* antennas (if order wifi) 1* package 1*12V 5A Power adapter and power plug.  There are 5 kinds of plug: Chinese standard / European standard / British standard / Australian standard /  American standard)     Shipment   1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!   2. The goods will be sent out within 3 working days after the full payment has been confirmed.   3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS.  And it’s about 8 to 14 working days by EMS.   Payment   1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!     2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.     3. Make sure all the detailed buyer information have been correctly and completely filled in.   Warranty   1.For all the mini pcs you bought from us, we provide a full one-year warranty.   2.We assure you that all the mini pc and accessories have been tested before delivery.   3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.   Feedback   1.Your early receipt confirmation and positive feedback are extremely important for us. We invite you to leave your comments and suggestions so that we can provide better service further.   2.Any problems can be discussed and settled through our efforts and patience. If you are not satisfied with the purchase, contact us, pls!
