Tiny computer Q180N with celeron j1800 processor onboard, Q190N with celeron J1900 processor, low power 10W, work 7 x 24,fanless

Product Description

size	S01: 135 x 128 x 38mm
	S02: 135 x 128 x 45mm
Net weight	S01: 650g
	S02: 820g
Color	Black
Onboard CPU	Q180N: Intel Celeron J1800 processor ( 1M Cache, dual core 2.41 GHz , up to 2.58 GHz)
	Q190N: Intel Celeron J1900 processor  ( 2M Cache, quad core 2 GHz , up to 2.42 GHz)
Memory	2GB/4GB/8GB 1333MHz/1600MHz DDR3L 1.35V SO-DIMM Memory - 1 x Memory Slot. 8GB MAX.
Storage	S01: 1 x mSATA port
	S02: 1 x  mSATA SSD and 1 x 2.5 inch SATA SSD / HDD
Processor Graphics	Intel HD Graphics
LAN	RJ-45 port - Realtek RTL8111E 10/100/1000 Controller
Wireless	Optional ( 802.11 b/g or 802.11 b/g/n)
Bluetooth	Optional
Audio	Realtek ALC662 HD Audio
Power Consumption	10W

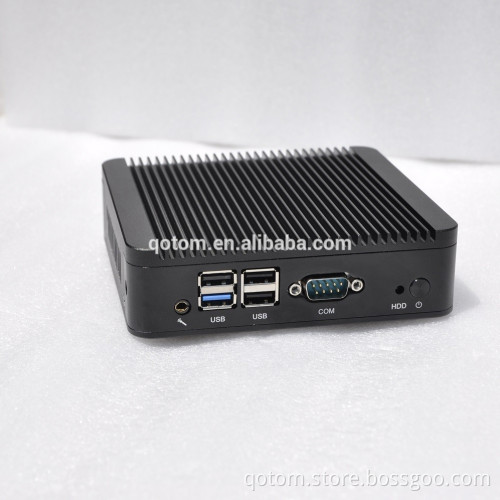

Front-Panel Connectors	• 1 x Power switch button ( Power LED ) • 1 x HDD LED • 3 x USB2.0 ports • 1 x USB3.0 ports • 1 x Microphone port • 1 x Serial port (RS232)
Back-Panel Connectors	• 1 x 12V DC input • 1 x HD Video port • 1 x VGA port  • 1 x RJ-45 port  • 1 x USB2.0 ports • 1 x Speaker port
Operating System	Support Windows 7 / Windows 8 /Windows 10/Linux etc.
Packing list	Q190N, Power supply, VESA Mount Bracket, dual antennas(if the order includes wifi)

Configurations
Memory	2GB / 4GB / 8GB DDR3L 1.35v SO-DIMM
Hard disk	8G/16G/32G/64G/128G/256G mSATA SSD and 500G / 1TB 2.5" HDD
WiFi / BT4.0	Optional

Quotation: Please choose Q180N / Q190N, S01 / S02, the memory and hard disk and then contact Alisa Lin to get the latest price.  Detailed Images S01(Back-Panel) S01(Front-Panel) S02(Back-Panel) S02(Front-Panel)
Please note:  QOTOM Mini PC has 2 versions: S01 and S02. S01 only support 1 x mSATA SSD. S02 support 1 x mSATA SSD and 1 x 2.5 " SATA SSD / HDD. The price is same but S01 can save the shipping cost. VESA Mount Bracket ( 75mm x75mm ) With VESA, the Mini PC can be hung on the back of monitor to save space.  WiFi and antennas If the order includes WiFi, there are 2 antennas in packing box. If you want to install WiFi by yourself, it need Half Mini PCIe card, feeder line and 2 antennas.
300M WiFi: USD 5 WiFI+BT4.0: USD 10 Motherboard Motherboard Q1800N / Q1900N 12 x 12 cm Mini ITX Motherboard is made for Mini PC. When you move the fan, you can find our logo on motherboard.  Motherboard can be sold separately.
Power Consumption: 10W. It can work 7 days x 24 hours. Product Uses Work as a commonly used computer QOTOM Mini PC can be applied to various domains: office, bank, hospital, hotel, supermarket, factory and so on. Our mini pc will be equal to the task, as long as common computer can work well. With competitive price, high quality and beautiful small case, mini PC Q series is a good solution to save money and space.

Mini PC can connect to keyboard, mouse, common screen, external disk, printer, scanister, control monitor, cash register, advertising machine and so on.
Packing & Delivery
Mini PC, 12V3A Power adapter and plug, VESA, foot pad, screws. If you order WiFi, it contains 2 antennas. Packing We use double brown paper packing box and EPE to protect the product. There is no logo, no words, no label on it.
Shipment We arrange the shipment timely within 2 business days after payment completed. DHL Express takes about 3 to 5 days to destination, door to door.
Fedex, EMS, HongKong air Post, UPS are options.
Please note Operating System: We preinstall unactivated Windows 7 Ult English for test by default and do not provide any Windows license. We are just hardware supplier and the price listed is excluding any OS. If you prefer to other OS, please leave a message. Thanks very much for your kind understanding.
If you need the drivers download link, please contact us.
Import fees:  We are not responsible for your import fees (duty and tax, VAT and others), but we can do our best to help you avoid or reduce them. Declaring a lower price is the best solution.
If you need us declare true value or lower value, please leave a message.
Please focus on the shipment, you can contact DHL/Fedex when the package reach to the Customs that may save some fees.
We are not responsible for the delays due to the Customs clearance in your country.
Related Products QOTOM Mini PC Q Series Q Series Mini PC is our main series. If you are interested in other Mini PC or motherboard, please contact Alisa Lin. Feedback The positive feedback has proved QOTOM is trustworthy!
