Qotom Q305P mini computer Industrial micro pc barebone desktop computer 2 lan nuc nano itx x86 mini pc linux server 12v

Product Description

Dimension	187*111*50mm(L*H*W)
Power Consumption	TDP 15W
Onboard CPU	Intel Celeron Processor 3205U (2M Cache, 1.50 GHz, Broadwell)
Memory	DDR3 RAM SO-DIMM
Hard Disk	support HDD (2.5 inch SATA HDD ) support SSD ( MSATA / SATA)
Onboard VGA	Intel HD Graphics
Onboard LAN	2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • HDD LED, Power LEDs • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 2 × COM ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x VGA header • 1 x GPIO header (optional) • 1 x SIM Card slot (optional)

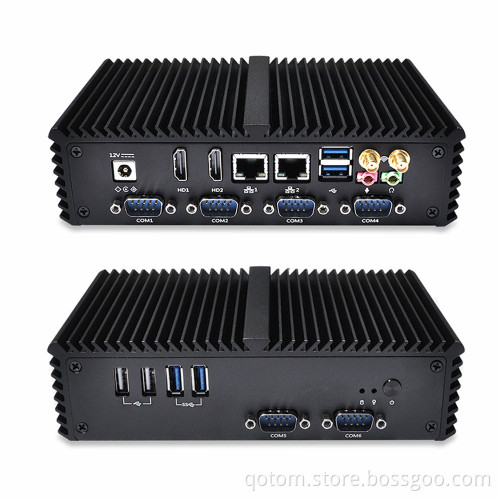

Back-Panel Connectors	• 1 ×12V DC input • 2 x HD video Connectors • 2 x Intel RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 4 × COM ports ( One can be changed into VGA，COM 2 can be changed to RS485)
Operating System	Windows 7 / Windows 8 / Windows 10 / Linux .etc
Configuration for your choice
Memory	2GB / 4GB / 8GB DDR3L SO-DIMM
Storage	8G/16G/32G/64G/128G/256G mSATA SSD and 500G / 1TB 2.5" HDD
WiFi /bluetooth	optional
ATTENTION: 1.You can change the above configuration according to your needs with upgrading quotation .

Detailed Images Packing & Delivery You do not need to worry about the plug.There are kinds of choice,and will be arranged according to your country's standard of application.
Product Application You can use the mini computer as the net server
connect to lots of official computers at the same
time. You Can also bulit it into the individual pc . it is very convenient to handle it and install it .

functional mini pc This is an spectacular mini pc. You can find it at your house theatre , your office ,lab and so on.
It is very small ,just like an pocket machine.so it can help you save enough space.
metal case , low power consumption makes it eco-friendly.
Related Products
Visit Our Factory QOTOM Technology LTD. In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team.

FAQ Advantages:
functions as server connect with tons of computers at the same time
Q305p Mini pc exists at house,bedroom, theatre ,and school and other placce ,being configured as a firewall or WAN router.The pocket pc save you more space and easy to carry than the tower one.
low power consumption,work in deep silence, it is very eco-friendly.


service:
The preloadded unactivated Windows 7 for test which have no license. If you want to change the os,pls contact me in time.
All the mini pc and accessories have been tested before delivery.
The goods will be sent to you about 3 days arrives at destination.
Email or message is all acceptable.
Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements.
We are not responsible for your import fees (duty and tax, VAT and others), but we can our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.
One year warranty.
FAQ:
Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
