Mini Computer Desktop Computer 3215u 4 Gigabit Lan Ubuntu mini pc

Product Description
Qotom Cheap Mini Desktop Computer with Intel Celeron 3215u 1.7 GHz Dual core. It contains 4*Intel I211-AT- Gigabit Lan port and 1*RS232 COM port, 3G/4G module or WIFI & Bluetooth supported. It is a fanless mini pc / Network security equipment, can be used for Firewall / Router / Home theater etc. Support Windows 7, Windows 8, Windows 10, Linux ubuntu, pfsense etc.

Specification
Dimension	187*111*50mm
Power Consumption	TDP 15W
Onboard CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory	Support DDR3L SO-DIMM Laptop 1.35V Ram (Max.8GB) 1 x DDR3L SO-DIMM Memory Slot
Chipset	Intel Soc Chipset
Hard Disk	Supports mSATA / SATA SSD supports SATA 2.5" HDD
Onboard VGA	Intel HD Graphics
Onboard LAN	Intel I211-AT- 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 1 x HDMI Connector • 1 × Serial port (RS232)
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/Bluetooth Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x GPIO header (optional) • 1 x SIM Card slot
Back-Panel Connectors	• 1 × DV 12V DC input • 1 × HDD LED, Power LEDs • 4 x Intel RJ-45 Ports • 1 x Speak Out Connector • 1 x Mic In Connector
Operating System	Support Windows 7 /Windows 8 / Windows 10 /Linux etc.

Detailed Images

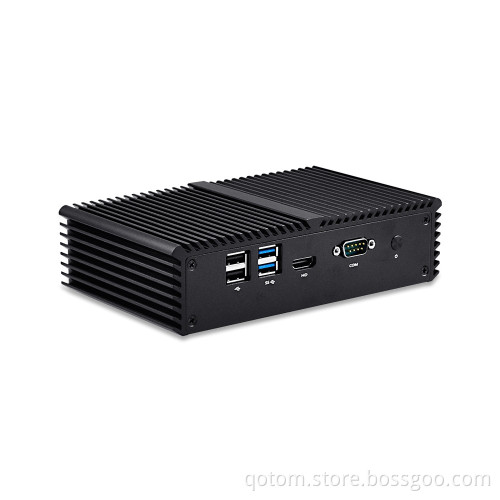

Fanless Desktop computer Q310G4 in front side
Fanless Desktop computer Q310G4 in back side


The Interface Description of Q310G4 motherboard: 1. 12V DC in connector          2. HDD led
3. Power led                                4. Lan connector
5. MIC: Connect to outside microphone
6. (Line out): Connect to outside audio device
7. 2* USB 2.0 ports                  8. 2* USB 3.0 ports
9. HDMI connector                  10. Serial port
11. Power button                     12. Front panel audio header
13. SATA power connector 14. SATA port
15. Front panel USB 2.0 header
16. Serial port expansion header (COM2)
17. Automatically boot jumper
18. GPIO header
19. Front panel header
20. SIM card socket
21. CPU fan header
22. Processor (Support HASWELL and BROADWELL )
23. Battery connector
24. DC in header (optional)         25. Mini PCI Express connector for MSATA SSD
26. Mini PCI Express connector for WIFI,Bluetooth,         3G module 27. DDR3L SO-DIMM socket





Fanless Q310G4 mini industrail desktop computer
Support Msata ssd or 2.5 inch SATA HDD at same time.Wifi Bluetooth for Optional.





Tiny Pc with Standard VESA Bracket


Packing & Delivery Step 1 Step 2
Step 3
Packing

We use double brown paper packing box and EPE to protect the product. There is no logo, no words, no label on it.
Packing list:  1* Q310G4 mini pc 1* Power adaptor with cable 1* VESA bracket and screws
Shipment We arrange the shipment timely within 2-3 business days after payment completed. DHL Express normally takes about 3 to 5 days to destination, door to door.
Fedex, EMS, HongKong air Post, UPS are options.
5 Kinds of Power Plug for opations. Related Products

	Fanless mini pc Q310P
CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz,Broadwell)
Power Consumption	TDP 15W
Memory	Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk	mSATA/ SATA SSD 2.5 INCH HDD
Pc Size	187*111*50mm

	Fanless mini pc Q190S
CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Power Consumption	TDP 10W
Memory	Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk	mSATA/ SATA SSD 2.5 INCH HDD
Pc Size	S01: 135×128×38mm S02: 135×128×45mm
