Desktop Computer J1900 Quad core mini pc 2 ethernet Lan

Product Description

Specification
Dimension	S01: 135*128*38mm / S02: 135*128*45mm
Power Consumption	TDP 10W
Onboard CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to2.41 GHz)
Memory	Support DDR3L SO-DIMM Laptop 1.35V Ram 2GB / 4GB / 8GB Options 1 x DDR3L DIMM Memory Slot Max. Supports up to 8GB Memory
Chipset	Intel Soc Chipset
Hard Disk	mSATA SSD 8G/16G/32G/64G/128G/256G/512G and 2.5" HDD 500G / 1TB Options Supports mSATA SSD ( S01 case by default) supports 2.5" HDD ( S02 case optional )
Onboard VGA	Intel HD Graphics
Onboard LAN	Realtek RTL8111E 10/100/1000 Controller
Audio Solution	Realtek ALC662 HD Audio
Front-Panel Connectors	• Power switch botton (Power LED) • HDD LED • 1 x USB 3.0 port • 3 x USB 2.0 Ports • 1 x Microphone Port • 1 x Serial port
Back-Panel Connectors	• 1 × DC 12V input • 2 × RJ-45 Ports • 1 × HDMI Port • 1 × VGA Port • 1 × Speaker Port
Operating System	Support Windows 7 /Windows 8 / Windows 10 /Linux Ubuntu etc.

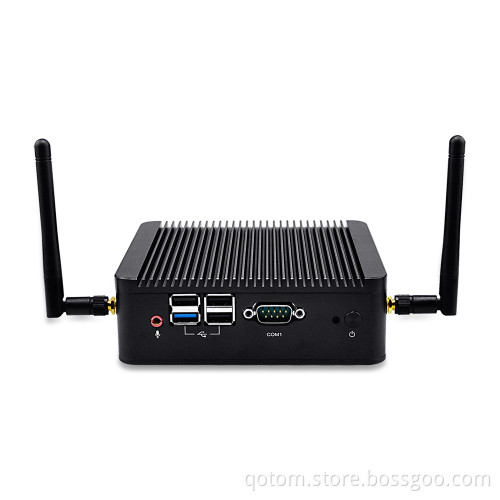

Detailed Images Desktop Computer Q190S (S01) Fanless micro Pc with S01 case in front side support Msata ssd ONLY. Desktop Computer Q190S (S01) Fanless micro Pc with S01 case in back side,  support Msata ssd ONLY.


Desktop Computer Q190S (S02) Nice mini pc with S02 case in front side support Msata ssd and 2.5 inch HDD Desktop Computer Q190S (S02) Nice mini pc with S02 case in back side
support Msata ssd and 2.5 inch HDD



Tiny Pc with Standard VESA Bracket








Inside of J1900 quad core mini pc

Packing & Delivery Step 1 Step 2
Step 3
Packing

We use double brown paper packing box and EPE to protect the product. There is no logo, no words, no label on it.
Packing list:  1* Q190S mini pc 1* Power adaptor with cable 1* VESA bracket and screws
Shipment We arrange the shipment timely within 2-3 business days after payment completed. DHL Express normally takes about 3 to 5 days to destination, door to door.
Fedex, EMS, HongKong air Post, UPS are options.
Related Products

	Fanless mini pc Q310P
CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz,Broadwell)
Power Consumption	TDP 15W
Memory	Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk	mSATA/ SATA SSD 2.5 INCH HDD
Pc Size	187*111*50mm

	Fanless mini pc Q180S
CPU	Intel Celeron Processor J1800(Dual-Core 2.41 GHz)
Power Consumption	TDP 10W
Memory	Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk	mSATA/ SATA SSD 2.5 INCH HDD
Pc Size	S01: 135×128×38mm S02: 135×128×45mm
