Desktop Computer J1900 Quad core router 4 Gigabit Lan Wireless Ubuntu mini pc

Product Description

Specification
Dimension	S01: 156*128*37mm / S02: 156*128*48mm
Power Consumption	TDP 10W
Onboard CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to2.41 GHz)
Memory	Support DDR3L SO-DIMM Laptop 1.35V Ram 2GB / 4GB / 8GB Options 1 x DDR3L DIMM Memory Slot Max. Supports up to 8GB Memory
Chipset	Intel Soc Chipset
Hard Disk	mSATA SSD 8G/16G/32G/64G/128G/256G/512G and 2.5" HDD 500G / 1TB Options Supports mSATA SSD ( S01 case by default) supports 2.5" HDD ( S02 case optional )
Onboard VGA	Intel HD Graphics
Onboard LAN	Intel I211AT - 10/100/1000 Controller
Audio Solution	-
Front-Panel Connectors	• power on/off • Power LED • 3 x USB 2.0 Ports • 1 x USB 3.0 Port • 1 x VGA Port
Back-Panel Connectors	• 1 × DC 12V input • Power LED,HDD LED • 4 x RJ-45 Ports • AC WIFI or Bluetooth (option only for USB singal)
Operating System	Support Windows 7 /Windows 8 / Windows 10 /Linux Ubuntu etc.
Configurations on this link
Memory	NONE
Hard Disk	NONE
WiFi / Bluetooth	NONE
Remark	It's barebone price on this link, pls contact me if need Ram/ Hard disk/ Wifi/ Bluetooth.

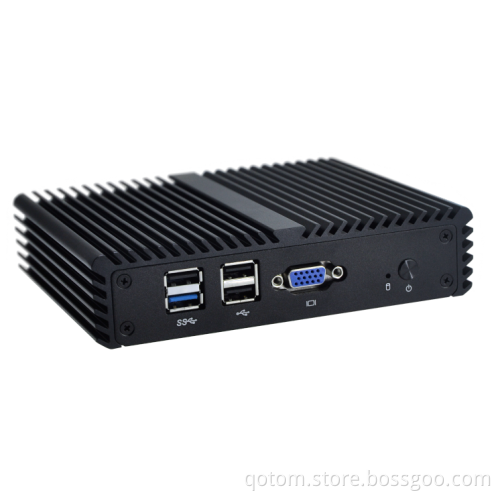

Detailed Images Desktop Computer Q190G4N (S01) Fanless micro Pc with S01 case in front side support Msata ssd ONLY.
Ubuntu mini pc with S02 case support Msata ssd and 2.5 inch HDD
Desktop Computer Q190G4N (S01) Fanless micro Pc with S01 case in back side,  support Msata ssd ONLY.

Ubuntu mini pc with S02 case support Msata ssd and 2.5 inch HDD
Tiny Pc with Standard VESA Bracket








Inside of J1900 quad core mini pc

Packing & Delivery Step 1 Step 2
Step 3
Packing

We use double brown paper packing box and EPE to protect the product. There is no logo, no words, no label on it.
Packing list:  1* Q190G4N mini pc 1* Power adaptor with cable 1* VESA bracket and screws
Shipment We arrange the shipment timely within 2-3 business days after payment completed. DHL Express normally takes about 3 to 5 days to destination, door to door.
Fedex, EMS, HongKong air Post, UPS are options.
Related Products

	Fanless mini pc Q310P
CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz,Broadwell)
Power Consumption	TDP 15W
Memory	Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk	mSATA/ SATA SSD 2.5 INCH HDD
Pc Size	187*111*50mm

	Fanless mini pc Q190S
CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Power Consumption	TDP 10W
Memory	Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk	mSATA/ SATA SSD 2.5 INCH HDD
Pc Size	S01: 135×128×38mm S02: 135×128×45mm
