Smart Mini PC Q110 win 10 Atom Z3735F Quad Core 2GB/32GB Bluetooth tv box streaming player

Product Description

Dimension	114.7*76*20mm(L*H*W)
Packaging dimension:	202*72*42mm
Weight	0.5Kg ( Reference )
Power Consumption	TDP:2.2W
Onboard CPU	Intel Atom Processor Z3735F (2M Cache, Quad core, 1.33Ghz up to 1.83 GHz)
Memory	2G embedded
Storage	32G emmc SSD embedded
Processor Graphics	Intel HD Graphics
Onboard LAN	Realtek RTL8152B
WIFI & Bluetooth	Realtek RTL8723BS Wireless LAN 802.11N SDIO network adapter All-in-ones 802.11 b/g/n 2.4GHz 1T1R WiFi with Bluetooth 4.0
Audio Solution	Realtek ALC5640 Audio controller
Front-Panel Connectors	1x Push button for Power ON/OFF 2x USB 2.0 ports 1x TF card slot 1x Micro USB port (For DC in,or normal USB port) 1x Mic in port/Audio out (all-in-ones)
Back-Panel Connectors	1x DC in connector (3.5/1.35mm) 1x HD Video port 1x VGA（D-Sub）port 1x RJ45 100M port
Power Supply	DC 5V 2.5A
Working condition	Working Temperature：0℃～50℃ Operation Humidity 10%-90% Relative Humidity, Non-Condensing
Operating System	Support Windows 8 32bit / Windows 10 32bit

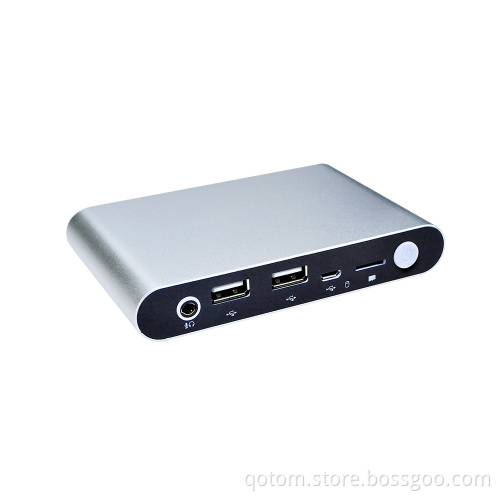

Qotom-Q110  MINI PC
Palm Size: 114.7*76*20mm(L*H*W) Weight: 0.5kg (WITH PACKAGE)
For Q110, you will get the mini pc with:
1*RJ-45 LAN +2*USB2.0 + 1* HD video+1*VGA(D-Sub) + 1*DC 5V INPUT+1*Micro USB port

1)Great reliability
With the adoption of the Z3735F ultra power consumption processor and switching mode power supply, Q110  can provide stable, sufficient and efficient power. The stability of the Q110 is further guaranteed with the switching mode of power supply applied in memory, too. All of the external devices of the motherboard is composed of some anti-static and jam-proof components which ensured the operation of a stable and efficient system.

2)Working Condition
Working Temperature：-10℃～50℃
Working Humidity：5%～95%（Non-gel）

Fanless, zero noise, cheap, small

Q110 Motherboard：
Related Products Application Field Our Company With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.
Contact Us Packing & Delivery
What's in the Package box?
1* mini pc
1* package box
1*5V 2.5A Power adapter and power plug.

Delivery 1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
PAYMENT 1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY 1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.
Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !
Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
Q6: What mode of transport you can choose?
A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.

Q7: How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.

Q8: Will it be very hot since the mini computer CPU is fan-less?
A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.

Q9: Possible using 220v AC power?
A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?
A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
