Qotom Industrial Fanless Mini Computer Hardware x86 12V bay trail j1900 processor PC Desktop Computer Ubuntu Mini PC

Product Description

ITEM	Q180N: Q180N-S0/S02 Q190N:  Q190N-S01/S02
Item Name	S01: 156*128*38mm (only support Msata SSD S02: 156*128*47mm(be able to support HDD and SSD at the same time)
Dimension	156*128*38mm/156*128*47mm
Power Consumption	TDP 10w
Processor	Intel Celeron bay trail J1900(Quad-Core 2M Cache,2 GHz, up to 2.42 GHz) Intel Celeron bay trail J1800(Quad-Core 2M Cache,2.41 GHz, up to 2.58 GHz)
Memory	Support DDR3 1333/1600 MHz 1.35V
Hard Disk	mSATA SSD
Onboard VGA	intel HD Graphics
Onboard LAN	RJ45 port Realtek RTL8111E 10/100/1000 Controller
WiFi	300M  WIFI
Audio Solution	Realtek ALC662 6-Channel HD Audio

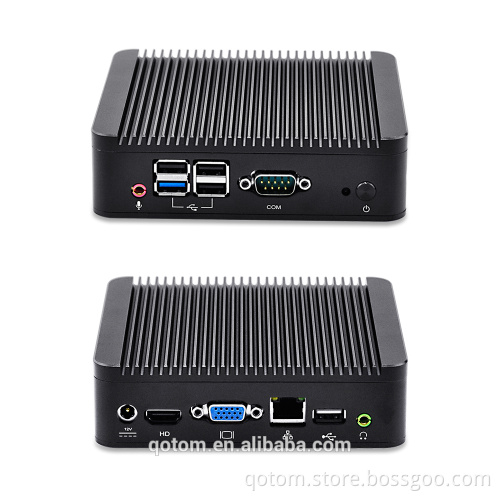

Front-Panel Connectors	power on/off      Power LED 1 * USB 2.0 Ports 1 * USB 3.0 Port 1* Microphone port 1* Serial port
Rear-Panel Connectors	1 *DV 12V input  Power LED,HDD LED  HD Video port 1* VGA port 1* USB 2.0 port  1* Speaker port 1 x RJ-45 Ports
Operating System	Windows 7 / Windows 8 / Windows 10 / Linux .etc

ATTENTION Here are all the configurations we can provide for you.

Memory: 2GB/4GB/8GB RAM
Hard disk: 8GB/ 16GB/32GB/64GB/128GB/240G/512GB Msata SSD
HDD: 500GB or 1TB HDD 2.5 inch
WIFI & bluetooth : 300M wireless Detailed Images Packing & Delivery You do not need to worry about the plug.There are kinds of choice,and will be arranged according to your country's standard of application.
Product Application You can use the mini computer as the net server
connect to lots of official computers at the same
time.

Fanless Mini PCs series are designed for unique, office, home and training applications. Their compact size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.
You Can also bulit it into the individual pc .it is very convinient to handle it and install it . functional mini pc Office work:  Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work:  Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing:  support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment:   support blu ray 1080P video play, and other
QOTOM  Products Visit Our Factory qotom technology co.Ltd. In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team.
Attention
Advantages:
functions as server connect with tons of computers at the same time.
Windows 7 is our unactivated preload system without any license . Q190N-S01 Mini pc exists at house,bedroom, theatre ,and school and other placce ,being configured as a firewall or WAN router.The pocket pc save you more space and easy to carry than the tower one. low power consumption,work in deep silence, it is very eco-friendly.
service: One year warranty
All the mini pc and accessories have been tested before delivery. The goods will be sent to you about 3 days arrives at destination. The preloadded unactivated  Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable. Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements. We are not responsible for your import fees (duty and tax, VAT and others), but we can  our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.
FAQ Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
