Industrial 2 ethernet Lan x86 Mini PC with Nano Itx Core i5-4200U Barebone Desktop Computer Router Server

Product Description

Dimension	135 x 128 x 48mm (only support Msata SSD)
Power Consumption	10w
Onboard CPU	Intel Core i5-4200U Processor,dual core (3M Cache, 2.60 GHz, Haswell)
Memory	SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot ,Max. 8GB
Hard Disk	SSD MSATA - support HDD (2.5 inch SATA HDD )
Onboard VGA	intel HD Graphics
Onboard LAN	Realtek RTL8111E 10/100/1000
WiFi / Bluetooth	support 300M/150M
Audio Solution	Realtek ALC662 6-Channel HD Audio

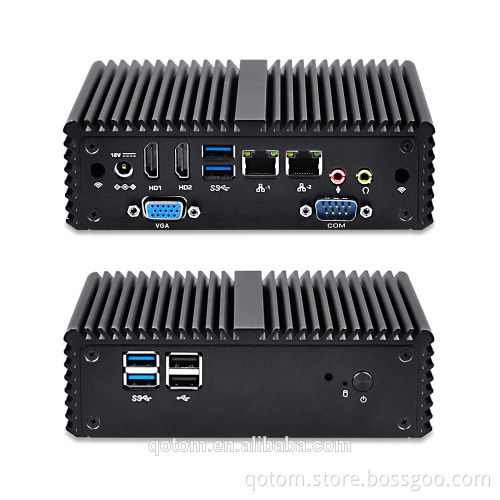

Front-Panel Connectors	• power on/off button • Power LED • 1 x IR Port (Microsoft standard) • 2 x USB 2.0 Ports • 2 x USB 3.0 Ports
Internal   Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOTH/3G/4G Module) • 1 x DDR3 DIMM Memory Slot • 1 x GPIO header • 1 x SIM card Slot • 1 x SATA Port • 1 x SATA power header • 1 x Front panel header • 1 x Front panel audio header • 1 x Front panel USB header • 1 x Automatically boot jumper
Rear-Panel Connectors	• 1×DV 12V DC input • 2 x HD Video Connectors • 2 x RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 1 × VGA port • 1 × COM port

Memory: 2GB/4GB/8GB RAM
Hard disk: 8GB/ 16GB/32GB/64GB/128GB/512GB Msata SSD
HDD: 500GB or 1TB HDD 2.5 inch
WIFI & bluetooth : 300M wireless

You can change the configuration we provided according to your needs.  Detailed Images Packing & Delivery You do not need to worry about the plug.There are kinds of choice,and will be arranged according to your country's standard of application.
Product Application "5S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment: support blu ray 1080P video play and others
Related Products Visit Our Factory QOTOM Technology LTD. In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team.
service One year warranty
All the mini pc and accessories have been tested before delivery. The goods will be sent to you about 3 days arrives at destination. The preloadded unactivated  Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable. Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements. We are not responsible for your import fees (duty and tax, VAT and others), but we can  our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.
FAQ Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
