2015 Z3735F Nano itx Motherboard in china OEM 5V2A power supplied dual display

2015 Z3735F Nano itx Motherboard in china OEM 5V2A power supplied dual display Product Description  Z3735F HIGH SPEED MINI PC MOTHERBOARD    Main Features:   1) Intel Atom Processor Z3735F  (2M Cache, Quad core);   2) 1x HDMI port, 1x VGA(D-Sub)port,support double display   3) 2 GB Soldered, 32G emmc SSD embedded   4)MINI ITX 10.5*7,Suitable For POS Machine,All In One Machine,ATM,TV BOX,Video Player,PC Station,MINI PC,Advertising Machine......

Qotom-Z3735F Pico ITX Motherboard Datasheet
		www.qotom.net
NO.	TYPE	Description
1	Mechanical standard	PICO ITX Industrial Motherboard
		105*70mm
2	Processor	Intel Atom Processor Z3735F  (2M Cache, Quad core, 1.33Ghz up to 1.83 GHz) TDP:2.2W
3	BIOS	AMI BIOS
4	Memory Size	2 GB Soldered,single channerl,DDR3
	Memory Types	DDR3L 1333Mhz 1.35V
5	Processor Graphics	Intel HD Graphics
6	WIFI & Bluetooth	Realtek RTL8723BS Wireless LAN 802.11N SDIO network adapter (All-in-ones) 802.11 b/g/n 2.4GHz 1T1R WiFi with Bluetooth 4.0
	LAN	Realtek RTL8152B
7	Audio	Realtek ALC5640 Audio controller
		Audio out + MIC IN Port
8	Storage	32G emmc SSD embedded
9	Front Panel	1x Push button for Power ON/OFF
		2x USB 2.0 ports
		1x TF card slot
		1x Micro USB port (For DC in,or normal USB port)
		1x Mic in port/Audio out (all-in-ones)
10	Black Panel	1x DC in connector (3.5/1.35mm)
		1x HDMI port
		1x VGA(D-Sub)port
		1x RJ45 100M port
11	Power Supply	DC 5V2A
12	Working condition	CPU Temperature 50ºC
		Operation Humidity 10%-90% Relative Humidity,
		Non-Condensing
13	Accessories	1* Motherboard

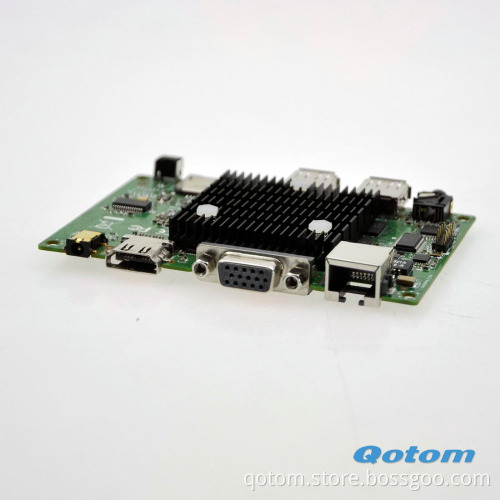

    Product Show      Packaging       Package Content 1*Motherboard   Package Information 0.3kg/pc (with pack)
