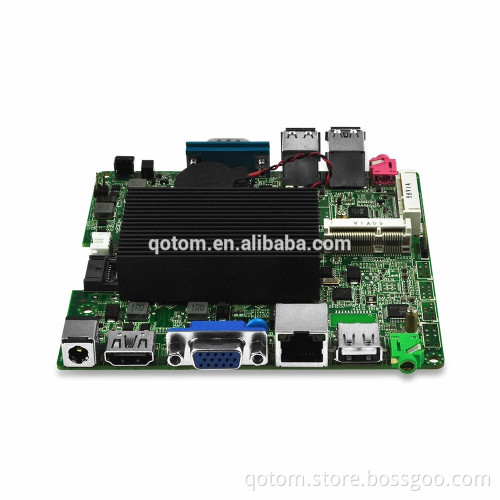

QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
  • QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
  • QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
  • QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
  • QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
  • QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
  • QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W
QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W

QOTOM Nano ITX motherboard with celeron j1800/j1900 processor onboard, low power consumption 10W

Get Latest Price
Delivery Time:
2 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description

TYPE Description
Mechanical standard NANO ITX Industrial Motherboard
120mm x 120mm
Processor Q1800N: Intel Celeron Processor J1800 (1M Cache, up to 2.58 GHz)
Q1900N: Intel Celeron J1900 processor ( 2M Cache, quad core 2 GHz , up to 2.42 GHz)
With up to 10 W TDP
BIOS AMI BIOS
16MBit SPI BIOS
Memory One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
Support DDR3L 1333 MHz and DDR3 1600 MHz SO-DIMM,1.35V
Support 8GB MAX
Graphics Intel HD Graphics
Display: VGA / HD Video Dual Display
1x HD Video (port), 1x VGA (pin)
LAN 1x Realtek RTL8111E 1000M
Audio Realtek ALC662 HD Audio Decoding controller
6 Channel Audio output
Line out + MIC IN Port
COM 1x COM(RS232 port)
USB 4x On-board USB 2.0
1x On-board USB 3.0
1x Pin interface USB 2.0
Storage 1x SATA 3.0 (6Gb/s)
1x Mini PCIE port
Expansion Port 1x PCI Express Full-Mini Card connector ( for mSATA SSD )
1x PCI Express Half-Mini Card connector ( for WIFI and Bluetooth )
1x SATA power connector
1x SATA 3.0 connector (6Gb/s)
1x DDR3 SO-DIMM socket
1x Front panel header
1x 9 Pin VGA header
1x Front panel audio header
1x Front panel dual-port USB 2.0 header
Front Panel 1x Push button for Power ON/OFF
1x Power LED
3x USB 2.0 ports
1x USB 3.0 port
1x Serial port
1x Mic in port
Black Panel 1x DC in connector
1x HD Video port
1x VGA(D-Sub)port
1x RJ45 1000M port
1x USB 2.0 port
1x Speaker out port
Power Supply DC 12-19V
Working condition Operation Temperature-10º-50ºC
Operation Humidity 10%-90% Relative Humidity,
Non-Condensing
Accessories Cable for SATA HDD
    QOTOM Nano ITX motherboard Q1800N is made for Mini PC Q180N; QOTOM Nano ITX motherboard Q1900N is made for Mini PC Q190N; If you are interested in QOTOM whole PC, please contact Alisa Lin
