Qotom nano itx fanless board , 2 ethernet LAN Celeron 3215U apply to x86 desktop computer

Product Description

TYPE	Description
Mechanical standard	NANO Industrial Motherboard
Dimension	120mm x 130mm
Processor	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
power consumption	With up to 15 W TDP
BIOS	AMI BIOS  64MBit BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V Support 8GB Max
Graphics	Intel HD Graphics Display: LVDS / 2 HD video ,Three Display
LAN	2 x RTL8111E 1000M
Audio	Realtek ALC662 HD Audio Decoding controller 6 Channel Audio output Line out + MIC IN Port
COM	4 x COM ports
USB	2 x On-board USB 2.0 4 x On-board USB 3.0 2 x Pin interface USB 2.0
Storage	1 x SATA 3.0 (6Gb/s) 1 x Mini PCIE port

Expansion Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD )
	1 x PCI E xpress Full-Mini Card connector ( for 3G/4G moudle )
	1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth )
	1 x SIM port (optional)
	1 x SATA power connector
	1 x SATA 3.0 connector (6Gb/s)
	1 x DDR3 SO-DIMM socket
	1 x Front panel header
	4 x Serial port headers
	1 x LVDS header
	1 x GPIO header
	1 x Automatically boot jumper
	2 x USB 2.0 header
	1 x Audio header
Front Panel	1 x Push button for Power ON/OFF
	1 x Power LED
	2 x USB 3.0 ports
	2 x USB 2.0 ports
Black Panel	1 x DC in connector
	2 x HD video Connectors
	2 x RJ45 1000M ports
	2 x USB 3.0 Ports
	1 x Mic in port
	1 x Speaker out port
Power Supply	DC 12V
Working condition	Operation Temperature -10º-50ºC
	Operation Humidity 10%-90% Relative Humidity,
	Non-Condensing
Accessories	Cable for SATA HDD

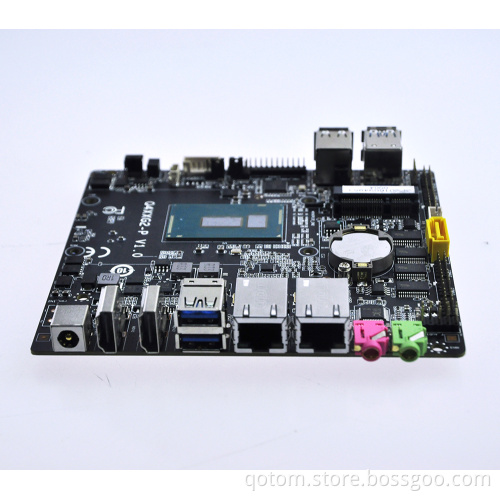

detail pictures mainboard

1	12V DC in connector
2	HD video connector
3	4 * USB 3.0 ports
4	Lan connector
5	MIC: Connect to outside microphone
6	(Line out): Connect to outside audio device
7	2 * USB 2.0 ports
8	LVDS
9	LVDS
10	LVDS
11	LVDS
12	CPU fan header
13	Power led
14	Power button
15	Front panel audio header
16	Serial port expansion header (COM4)
17	Serial port expansion header (COM3)
18	Serial port expansion header (COM2)
19	SATA port
20	SATA power connector
21	Serial port expansion header (COM1)
22	Front panel header
23	GPIO header
24	Front panel USB 2.0 header

25	Battery connector
26	Mini PCI Express connector for 3G module
27	Automatically boot jumper
28	Processor (Support Haswell/Broadwell )
29	DC in header (optional)
30	Mini PCI Express connector for MSATA SSD
31	Mini PCI Express connector for WIFI,Bluetooth module
32	SIM card socket
33	DDR3L SO-DIMM socket

mainboard for "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others
