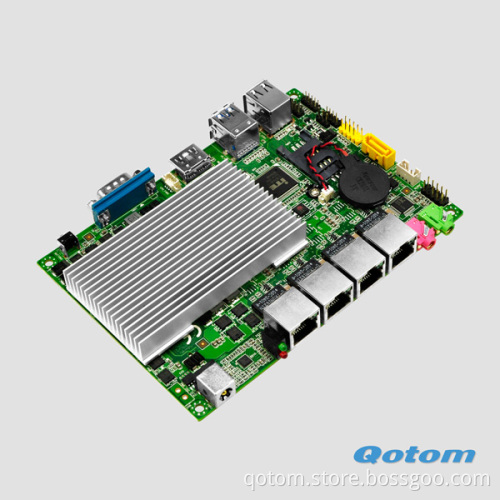

Qotom Nano Mini itx fanless motherboard with 3215U, x86 4 ethernet micro industrial pc mothboard

Product Description

Motherboard Name	3215UG4-P
Mechanical standard	3.5" Industrial Motherboard
Size	148mm x 104mm
Processor	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
power consumption	With up to 15 W TDP
BIOS	AMI BIOS   64MBit BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V Support 8GB Max
Graphics	Intel HD Graphics
Display	HD Display
LAN	4 x Intel I211-AT 1000M
Audio	Realtek ALC662 HD Audio Decoding controller 6 Channel Audio output Line out + MIC IN Port
Storage	1 x SATA 3.0 (6Gb/s)
	1 x Mini PCIE port
Internal Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD ) 1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth ) 1 x SIM port (optional) 1 x SATA power connector 1 x SATA 3.0 connector (6Gb/s) 1 x DDR3 SO-DIMM socket 1 x Front panel header 1 x Serial port header 1 x GPIO header 1 x Automatically boot jumper 2 x USB 2.0 header 1 x Audio header
Front Panel	1 x Power ON/OFF 1 x HD Connector 1 x Serial port 2 x USB 3.0 ports 2 x USB 2.0 ports
Back Panel	1 x DC in connector 1 x Power LED 1 x HDD LED 4 x RJ45 1000M ports 1 x Mic in port 1 x Speaker out port
Power Supply	DC 12V
Working condition	Operation Temperature -10º-50ºC
working condition	Operation Humidity 10%-90% Relative Humidity,
Accessories	Cable for SATA HDD

detail pictures mainboard

1	12V DC in connector
2	HDD led
3	Power led
4	Lan connector
5	MIC: Connect to outside microphone
6	(Line out): Connect to outside audio device
7	2* USB 2.0 ports
8	2* USB 3.0 ports
9	HD video connector
10	Serial port
11	Power button
12	Front panel audio header
13	SATA power connector
14	SATA port
15	Front panel USB 2.0 header
16	Serial port expansion header (COM2)
17	Automatically boot jumper
18	GPIO header
19	Front panel header
20	SIM card socket
21	CPU fan header
22	Processor (Support HASWELL and BROADWELL )
23	Battery connector
24	DC in header (optional)

25	Mini PCI Express connector for MSATA SSD
26	Mini PCI Express connector for WIFI,Bluetooth,3G module
27	DDR3L SO-DIMM socket

mainboard for "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is in
tegrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others
