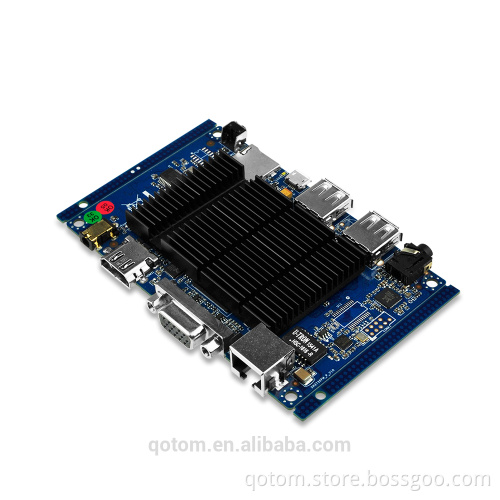

2017 PICO ITX Industrial Motherboard,Atom Processor Z3735F ,Quad Core, 2 GB Soldered,32G emmc SSD embedded, 1 VGA +1 Lan+2 USB

Product Description

Mechanical standard	PICO ITX Industrial Motherboard
	105*70mm
Processor	Intel Atom Processor Z3735F (2M Cache, Quad core, 1.33Ghz up to 1.83 GHz) TDP:2.2W
BIOS	AMI BIOS
Memory Size	2 GB Soldered,single channerl,DDR3
Memory Types	DDR3L 1333Mhz 1.35V
Processor Graphics	Intel HD Graphics
WIFI & Bluetooth	Realtek RTL8723BS Wireless LAN 802.11N SDIO network adapter (All-in-ones) 802.11 b/g/n 2.4GHz 1T1R WiFi with Bluetooth 4.0
LAN	Realtek RTL8152B
Audio	Realtek ALC5640 Audio controller
	Audio out + MIC IN Port
Storage	32G emmc SSD embedded
Front Panel	1x Push button for Power ON/OFF
	2x USB 2.0 ports
	1x TF card slot
	1x Micro USB port (For DC in,or normal USB port)
	1x Mic in port/Audio out (all-in-ones)
Black Panel	1x DC in connector (3.5/1.35mm)
	1x HD Video port
	1x VGA（D-Sub）port
	1x RJ45 100M port
Power Supply	DC 5V2.5A
Working condition	Working Temperature：0℃～50℃
	Operation Humidity 10%-90% Relative Humidity,
	Non-Condensing
Accessories	1* Motherboard

Detailed Images Main Features 1.Onboard Intel Atom Processor Z3735F (2M Cache, Quad core, 1.33Ghz up to 1.83 GHz),Quad-Core

2.2 GB Soldered,32G emmc SSD embedded,WIFI+Bluetooth 4.0

3.With 1*LAN Ports,2*USB Ports,1*VGA

4.Fanless Design,No Noise
About US Qotom Technology CO., LTD is a professional manufacturer for Mini PC & Nano-Itx Motherboard.

Since 2004, we begin to produce and selling Mini PC & Nano-Itx Motherboard in China. After five years development, now we opened big market all over the world. You can find Qotom Mini PC & Nano-Itx Motherboard easily in Asia, Middle East, Latin America and Africa easily, also you can find some of us in other markets.

Our business aim is to let more and more people come to know and use thin clients. We supply our customer solutions for economical computing, computers that are heaper and smaller than traditonal desktops.
Packing
1*motherboard
1* SATA Cable Delivery
1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!

2. The goods will be sent out within 3 working days after the full payment has been confirmed.

3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.

Payment
1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!

2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.

3. Make sure all the detailed buyer information have been correctly and completely filled in.
Warranty 1.For all the mini pcs you bought from us, we provide a full one-year warranty.

2.We assure you that all the mini pc and accessories have been tested before delivery.

3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ
Q1. What's your MOQ?

A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?

A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?

A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?

A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.

Q4. Can you provide OEM/ODM service?

A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !

Q5: Can I arrange the shipment by myself ? I have forwarder in China.

A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.

Q6: What mode of transport you can choose?

A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.

Q7: How does your factory do related quality control?

A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.

Q8: Will it be very hot since the mini computer CPU is fan-less?

A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.

Q9: Possible using 220v AC power?

A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?

A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
