Firewall Router Industrial Mini itx motherboard dual core processor Intel Celeron 1037u DDR3 RAM and mSATA SSD,2 ethernet 1.8ghz

Product Description

Motherboard Name	1037UG2-P
Mechanical standard	NANO ITX Industrial Motherboard
Size	120mm x 120mm
Processor	Intel Celeron Processor 1037u (2M Cache, 1.80 GHz Dual-Core)
power consumption	17 W TDP
BIOS	16MBit SPI BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V Support 8GB Max
Graphics	Intel HD Graphics Display: VGA / HDMI/LVDS Dual Display
LAN	1x Realtek RTL8111E 1000M
Audio	Realtek ALC662 HD Audio Decoding controller 6 Channel Audio output Line out + MIC IN Port
Storage	1 x SATA 3.0 (6Gb/s)  1 x Mini PCIE port
Internal Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD ) 1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth ) 1x SATA power connector 1 x SATA 3.0 connector (6Gb/s) 1 x DDR3 SO-DIMM socket 1 x Front panel header 1 x Serial port header 1x 9 Pin VGA header 1x LVDS header (optional) 1x Front panel audio header 1x Front panel dual-port USB 2.0 header
Front Panel	1x Push button ( With LED) for Power ON/OFF 1x HDD LED 1x Serial port 1x Mic in port 4x USB 2.0 ports
Back Panel	1 x DC in connector 2x RJ45 1000M port 1x VGA（D-Sub）port 1x HD Video  port 1 x Speaker out port
Power Supply	DC 12V-19V
Working condition	Operation Temperature -10º-50ºC
working condition	Operation Humidity 10%-90% Relative Humidity,
Accessories	Cable for SATA HDD

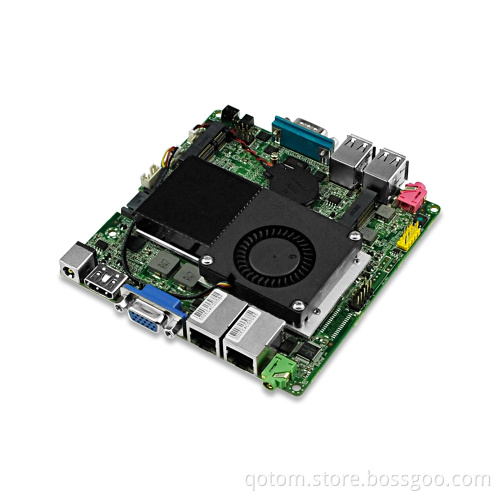

detail pictures mainboard  Q1037UG2-P for Q100S
If you are interested in this mini pc,pls contact Sunny Lau Q100S-S01: 135*128*37mm (support only SSD) Q100S-S02: 135*128*45mm (be able to support SSD and 2.5 inch HDD at the same time)
mainboard for "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is in
tegrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others

Related fanlProducts Q310G4( 4 LAN, HD Video port ,       4USB,COM)
Dual core Intel Celeron 3215u processor
Q190G4N(4 LAN, 4USB, VGA)
Intel  Celeron baytrail j1900 ,quad core  processor
Q190N/Q180N(   5USB,LAN, VGA,COM, 4USB)
Intel Celeron baytrail j1900 processor
Q190P/Q180P(4COM,4USB,2LAN,HD Video port)
quad core  Celeron j1900 processor
Q310P(8USB,2HD video,6COM) Intel celeron desktop computer
Celeron 3215U/3205U/3805U/4200U/I7-4500U Processor
Q190S/Q180S(2 LAN 2USB, HD + VGA)
Intel Celeron J1900/J1800 CPU
fanless mini computer

Visit Our Factory QOTOM Technology LTD. In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team. Our Service
One year warranty
All the mini pc and accessories have been tested before delivery. The goods will be sent to you about 3 days arrives at destination. The preloadded unactivated  Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable. Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements. We are not responsible for your import fees (duty and tax, VAT and others), but we can  our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.
FAQ Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
