Mini PC Nano itx Motherboard Quad core 2.42Ghz, HD Video port, VGA, Dual LAN, 5 USB, 1 COM Mainboard

Product Description

Mechanical standard	Nano Industrial Mini itx Motherboard
Size	120mm x 120mm
Processor	Intel Celeron Processor J1900 (1M Cache, up to 2.42 GHz)
Power Consumption	10W TDP
BIOS	AMI BIOS   16MBit SPI BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V 8GB Max
Graphics	Intel HD Graphics  Display: VGA / HD Video Dual Display 1x HD Video (port), 1x VGA (pin)
LAN	1 x Realtek 8111E 1000M
Audio	Realtek ALC662 HD Audio Decoding controller  6 Channel Audio output Line out + MIC IN Port
COM	1 x COM(RS232) port header
USB	4 x On-board USB 2.0 1 x On-board USB 3.0 1x Pin interface USB 2.0
Storage	1 x SATA 3.0 (6Gb/s) 1 x Mini PCIE port
Expansion Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD ) 1 x PCI E xpress Full-Mini Card connector ( for WIFI/ Bluetooth/3G Card ) 1 x SIM port (optional) 1 x SATA power connector 1 x SATA 3.0 connector (6Gb/s) 1 x DDR3 SO-DIMM socket 1 x Front panel header 1x 9 Pin VGA header 1x Front panel audio header 1x Front panel dual-port USB 2.0 header
Front Panel	1 x Push button for Power ON/OFF 1 x Power LED 1 x USB 3.0 ports 3 x USB 2.0 ports 1x Serial port headers 1x Mic in port
Back Panel	1 x DC in connector 1 x HD Video Connectors 1x VGA(D-Sub)port 1x RJ45 1000M ports 1x USB 2.0 port 1x Speaker out port
Power Supply	DC 12V-19V
Working condition	Operation Temperature -10º-50ºC Operation Humidity 10%-90% Relative Humidity, Non-Condensing
Accessories	Cable for SATA HDD

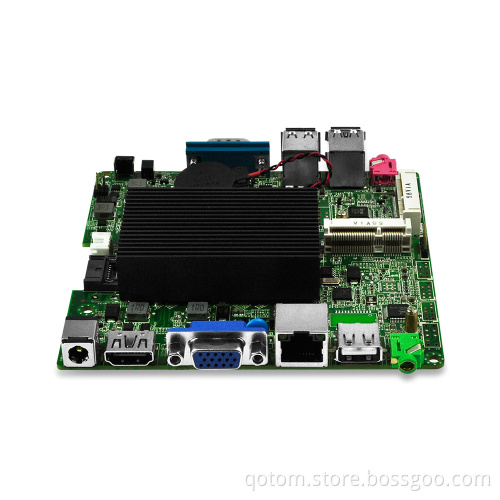

detail pictures Motherboad fDesktops Motherboard for Q190N
The package contains a SATA cable.If you need 3 COM cable, please leave a message.
If you are interested in our pc,pls contact  Sunny Lau Q190N-01: 135*128*37mm( support only Msata SSD) Q190N-02: 135* 128* 45mm (able to support HDD and SSD at the same time)
mainboard for "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is in
tegrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others
