OEM/ODM Industrial PC with 6 RS232 Dual Lan Ports Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell) on board

     Products Datasheet

Specification
Dimension	187*115*52mm(L*H*W) ( Reference )
Weight	2Kg  ( Reference )
Power Consumption	TDP 15W
Onboard CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory	Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot Max. Support up to 8GB Memory
Hard Disk	- support SSD ( MSATA / SATA)  - support HDD (2.5 inch SATA HDD )
Onboard VGA	Intel HD Graphics
Onboard LAN	2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • HDD LED, Power LEDs • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 2 × COM ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x  VGA header • 1 x GPIO header  (optional) • 1 x SIM Card slot (optional)

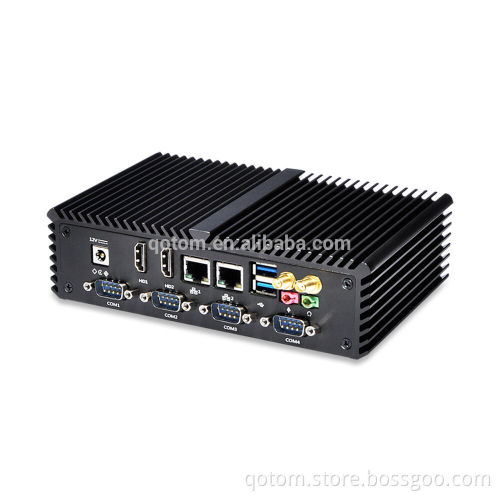

Back-Panel Connectors	• 1 ×DV 12V DC input • 2 x HD Video Connectors • 2 x Intel RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 4 × COM ports   ( COM 2 can be changed to RS485) • 1 × VGA port  (optional,  If you choose VGA, one of six serial ports will be occupied )
Operating System	Support Windows 7 / Windows 8 / Windows 10 / Linux .etc

                                 Product Show     Product Description 1)- Beautiful: Industrial aesthetic design and Reasonable interface layout; 2)- Noiseless: Fanless system, low consumption, 0.00dB noise; 3)-It Can install 1pc 2.5'' SSD or HDD and 1pcs Msata SSD(5CMx3CM) together(welcome to contact Cherry if you need it) up to 256GB SSD or 1TB Hard disk large volume; You can enjoy RAID speed Max up to Gigabit per second; 4)-Stable: Newest Intel Celeron 3215U+Intel Graphics HD +Fanless professional passive cooling by alloy case, be able to work 24hours per day; 5)- Slim: Only 52mm body thickness, can stand on desk by free bracket we supply; 6)- Strong: Work with any brand monitors; 2*RJ45 Gigabit Lan Nics+2*HD Video+4*USB3.0 2*USB2.0+6*COM port Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects; 6)-Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.             You can DIY the machine all by yourself! Tell us your demand and We will see if it's workable.  If you are not sure which one model you want, pls contact Cherry Ni for recommendation of the most suitable one for you.    About OEM:  OEM  available for company logo, appearance, ram and storage capacity.OEM Service is warmly welcome, but the MOQ is 100 pcs.   This computer has been tested and it boots and works fine!!   Packaging & Shipping    1*mini pc 1*Terminal device
1*power adapter( Chinese standard / European standard / British standard / Australian standard / American standard ) 1*chassis
1*package box 2*antennas (if you order WIFI)   1 PCS 2KG including package      27*23*9CM   Shipment   1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!   2. The goods will be sent out within 3 working days after the full payment has been confirmed.   3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS.  And it’s about 8 to 14 working days by EMS.   Payment   1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!     2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.     3. Make sure all the detailed buyer information have been correctly and completely filled in.   Warranty   1.For all the mini pcs you bought from us, we provide a full one-year warranty.   2.We assure you that all the mini pc and accessories have been tested before delivery.   3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.   Feedback   1.Your early receipt confirmation and positive feedback are extremely important for us. We invite you to leave your comments and suggestions so that we can provide better service further.   2.Any problems can be discussed and settled through our efforts and patience. If you are not satisfied with the purchase, contact us, pls!
