Desktop computer 2 ethernet itx Core i7 barebone PC Computer proxy pfsense router server fanless pc linux Ubuntu Mini PC 12V

Product Description

Dimension	187*111*50mm(L*H*W)
Power Consumption	TDP 15W
Onboard CPU	Intel Core Processor i7-4500U(4M Cache, 1.80GHz, dual core)
Memory	Support DDR3 RAM SO-DIMM
Hard Disk	Support MSATA SSD and 2.5 inch HDD
Onboard VGA	Intel HD Graphics
Onboard LAN	2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • HDD LED, Power LEDs • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 2 × COM ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x VGA header • 1 x GPIO header (optional) • 1 x SIM Card slot (optional)

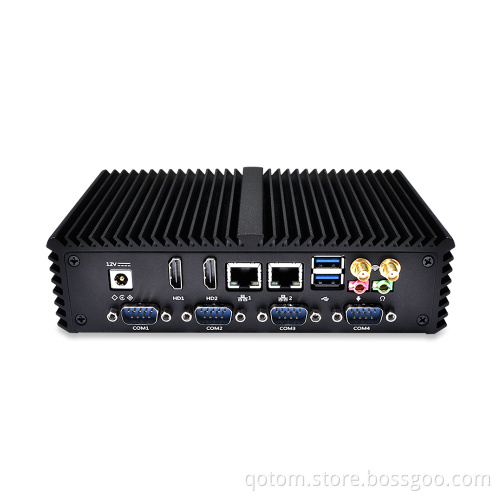

Back-Panel Connectors	• 1 ×12V DC input • 2 x HD Video ports • 2 x Intel RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 4 × COM ports ( COM 2 can be changed to RS485) • 1 × VGA port
Support OS	Windows 7 / Windows 8 / Windows 10 / Linux .etc
Available   Configuration for your choice
Memory	2GB / 4GB / 8GB DDR3L SO-DIMM
Storage	8G/16G/32G/64G/128G/256G mSATA SSD and 500G / 1TB 2.5" HDD
WiFi /bluetooth	optional

Detailed Images Packing & Motherboar You do not need to worry about the plug.There are kinds of choice,and will be arranged according to your country's standard of application.
Product Application "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others Related Products Our product on sale Visit Our Factory QOTOM Technology LTD. In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team. service The preloadded unactivated Windows 7 for test which have no license. If you want to change the os,pls contact me in time
All the mini pc and accessories have been tested before delivery.
The goods will be sent to you about 3 days arrives at destination.
Email or message is all acceptable.
Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements.
We are not responsible for your import fees (duty and tax, VAT and others), but we can our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.
One year warranty.
FAQ:
Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
