2017 New multiple serial ports Mini Pc Celeron 3215U CPU, 2G RAM, 8G SSD,WIFI ,Dual Lan ,Fanless, support win OS Linux ubuntu

Product Description

Dimension	187*111*50mm(L*H*W) ( Reference )
Packaging dimension:	260*230*70mm
Weight	2.5Kg ( Reference )
Power Consumption	TDP 15W
Onboard CPU	Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory	Support DDR3L 1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot Max. Support up to 8GB Memory
Hard Disk	- support SSD ( MSATA / SATA) - support HDD (2.5 inch SATA HDD )
Onboard VGA	Intel HD Graphics
Onboard LAN	2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution	Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors	• power on/off button • HDD LED, Power LEDs • 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 2 × COM ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x VGA header • 1 x GPIO header (optional) • 1 x SIM Card slot (optional)
Back-Panel Connectors	• 1 ×DV 12V DC input • 2 x HD Video Connectors • 2 x Intel RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 4 × COM ports ( COM 2 can be changed to RS485) • 1 × VGA port (optional, If you choose VGA, one of six serial ports will be occupied )
Operating System	Support Windows 7 / Windows 8 / Windows 10 / Linux .etc

Configuration for Selection:

Memory	2G, 4G , 8G DDR3 RAM
Hard Disk	8G/16G/24G/32G/64G/128G/256G/512G Msata SSD   500G/1Tb 2.5“ HDD
WIFI	Optional

Quotation What size Memory and Hard Disk do you need? Please choose Memory, Hard disk and contact Cherry Ni to get the latest price.

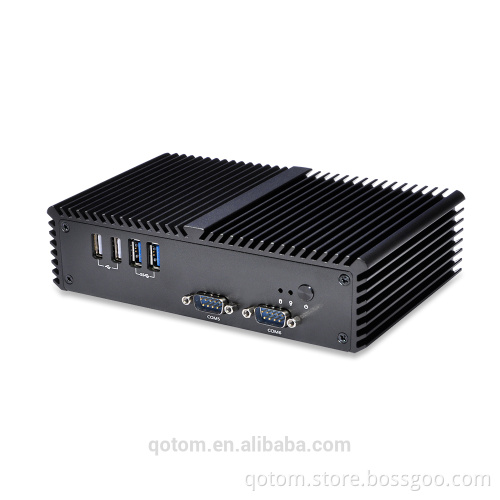

Qotom-Q310P MINI PC
Palm Size: 187*111*50mm(L*H*W) Material: aluminium alloy ,Metal wire drawing process.
Weight: 2.0kg (WITH PACKAGE)
For Q310P, you will get the mini pc with:
6*COM +2*RJ-45 LAN+2*HD Video +2*USB2.0 +4*USB3.0+ 1*DC 12V DC INPUT

1)Great reliability

With the adoption of the Haswell/Broadwell ultra-low power consumption processor and switching mode power supply, Q3215UG2-P motherboard can provide stable, sufficient and efficient power. The stability of the motherboard is further guaranteed with the switching mode of power supply applied in memory, too. All of the external devices of the motherboard is composed of some anti-static and jam-proof components which ensured the operation of a stable and efficient system.

2)High Performance

It considerably increases performance of the platform by employing the Haswell/Broadwell chipset of Intel and SATA3.0

3)Full Support of BIOS

Support Diskless booting and Wake on LAN

4)Working Condition

Working Temperature：-10℃～50℃

Working Humidity：5%～95%（Non-gel）



Q310P Motherboard：



VESA bracket It comes with a VESA mounting kit so that you can put it on the backside of a monitor to save space. WIFI If you order WIFI, the package box will include 2 pcs antennas. Related Products Application Field Industrial products and technology industry is very special. Providing reliable, embedded,intelligent industrial computers for various other industries. With the depth of information society from time to time, are intermediate products. Mission-critical key industries will increasingly rely on the IPC, and with low interest IPC based industrial control automation is becoming mainstream, some other place IPC manufacturers increasingly high level of attention.With the rapid development of electric power, metallurgy, petrochemical, environmental protection,transportation, construction and other industries, from digital home with top boxes, digital TVs,ATMs, highway toll collection system, gas management, manufacturing production line control,finance, government, defense and other industries increased demand for information from time to time, a great demand for IPC, IPC market prospects are bright,let us look at the IPC industry's future
Our Company With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.
Contact Us Packing & Delivery
What's in the Package box?
1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 3A Power adapter and power plug.
There are 4 kinds of plug: European standard / British standard / Australian standard / American standard)

Delivery 1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
PAYMENT 1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY 1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.
Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !
Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
Q6: What mode of transport you can choose?
A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.

Q7: How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.

Q8: Will it be very hot since the mini computer CPU is fan-less?
A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.

Q9: Possible using 220v AC power?
A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?
A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
