Qotom-Q150P-S08 Barebone System Braswell Processor N3150 Quad-core 1.6 GHz up to 2.08 GHz

Product Description

Dimension	156 x 128 x 48mm
Weight	0.82KG
Power Consumption	10W
Onboard CPU	Intel Braswell Celeron Processor N3150 Quad-core 1.6 GHz, up to 2.08 GHz
Integrated graphics	Intel HD Graphics
LAN	2 x Realtek 8111E 10/100/1000 Controller
Memory	- Support 1333/1600 MHz DDR3L 1.35V SO-DIMMs, 1 x Memory Slot, Max. Supports up to 8GB Memory
Hard Disk	- Support MSATA SSD - Support 2.5 Inch SATA HDD
Wireless	300M WiFi (Optional)
Bluetooth	Bluetooth 4.0 + 300M WiFi (Optional)

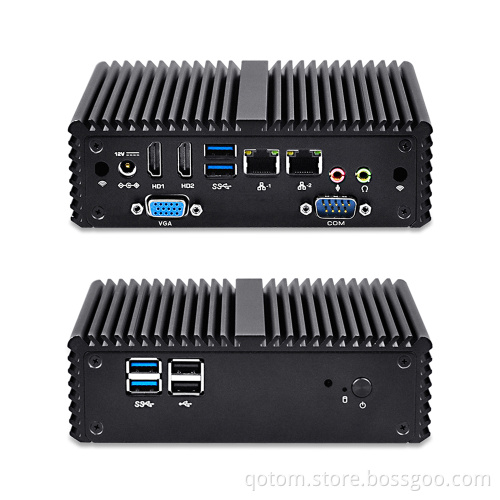

Front-Panel Connectors	1 x Power on/off button 1 x Power LED 1 x IR Port (Microsoft standard) 2 x USB2.0 ports 2 x USB3.0 ports
Internal Connectors	1 x Minipcie port (for mSATA SSD) 1 x Minipcie port (for WIFI/BLUETOOTH/3G/4G Module) 1 x DDR3 DIMM Memory Slot 1 x GPIO header 1 x SIM card Slot 1 x SATA Port 1 x SATA power header 1 x Front panel header 1 x Front panel audio header 1 x Front panel USB header 1 x Automatically boot jumper
Back-Panel Connectors	1 x DC 12V DC input 2 x HD Vedio port 2 x RJ-45 port 2 x USB 3.0 port 1 x Speaker Out Connector 1 x Mic In Connector 1 x VGA port 1 x COM port
Operating System	Support Windows 7 / Windows 8 / Windows 10 / Linux .etc

Detailed Images Feature 1) All solid state, shockproof, anti-shock, long-term stable operation;
2) Main Port: 1 COM + 1 VGA + 2 HD Video + 2 LAN + 2 USB 2.0 + 4 USB 3.0; 3) Configuration: Barebone-S08 (NO DDR3 RAM; NO MSATA SSD; NO 2.5 Inch HDD; NO WiFi; NO Bluetooth; NO OS; Fanless. Please Note: 1) Barebone System (NO RAM / SSD / OS / Wireless card inside)! The parts on pictures are just for reference! Please install these parts, Operating System and software package by yourself after you receive the device.
2) We can provide Windows drivers and motherboard User Manual download link.
Packing & Delivery Packing Selling units:                Single item
Single package size:    27X23X9 cm
Single gross weight:     2.0 KG
Package type:              1 piece in each box                    Including:  1 x Mini PC (Q150P-S08)                                     1 x Power Supply                                     1 x VESA Mount Bracket Delivery We arrange the shipment timely within 2 business days after payment completed. DHL Express takes about 3 to 5 days to destination, door to door.
DHL, FedEX, EMS, UPS, TNT are options. Shipping & Payment
Shipping DHL, FedEX, EMS, UPS, TNT, By sea for big order.
Payment We accept T/T, western union and Paypal. If you prefer to place orders online, we can provide QOTOM Amazon store link.


Shipping Method List for Reference

Carrier Name	Delivery Time NOT Including Holiday	Checking Website
DHL	2-7 Days	https://www.dhl.com/en.html
Fedex	2-10 Days	https://www.fedex.com/
EMS	5-25 Days
UPS	3-10  Days	https://www.ups.com/
TNT	3-10 Days	https://www.tnt.com/portal/location/en.html

FAQ Q: What's your MOQ?
A: MOQ: 1 piece.
Q: Can I get a sample for testing?
A: Yes, we can provide you a sample for reference, the sample and shipping cost will be paid by customer.

Q: Can you provide OEM/ODM service?
A: Sure, you can choose RAM, storage, wifi, interface port and OS freely as you want, the unit price will be different depends on the configuration, please contact us for more details!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silk print or laser, as you required.

Q: What's the lead time?
A: It will be 2-5 days for sample and 3-12 days for bulk order, depends on your required.

Q: What are you the means of transportation?
A: Usually we will deliver our products by Air or by Sea, we're using international express like DHL, UPS or FEDEX, and we will also pay for the insurance for the shipment.

Q: How long is your warranty period?
A: We promise 1 year warranty.

Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Sure, we can arrange a trustworthy shipping company the arrange the shipment for you!

More information please contact with us at anytime!
Warranty 1) For all the mini pcs you bought from us, we provide a full one-year warranty.
2) We assure you that all the mini pcs and accessories have been tested by our professional team before delivery.
3) It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.
