Fanless Micro PC Qotom-Q180N Celeron J1800 baytrail 5*usb 1*rj45 X86 1080P DC 12V mini computer

Product Description Fanless Micro PC Qotom-Q180N Celeron J1800 baytrail 5*usb 1*rj45 1080P DC 12V mini computer

Model	QOTOM-Q180N-S01	QOTOM-Q180N-S02
Size	135×128×38mm	135×128×45mm
Weight	630g	820g
Color	Black  - silver need booking	Black  -silver need booking
Onboard CPU	Intel Celeron Processor J1800 (Dual-Core 1M Cache,2.41 GHz, up to 2.58 GHz)
Memory	1 x Memory Slot,Supports up to 8GB 1333MHz DDR3 SO-DIMM Memory
Storage	- mSATA port  - Large capacity mSATA SSD is optional	- supports mSATA SSD and 2.5" HDD  - Support SATA 3.0
Onboard VGA	Intel HD Graphics
LAN	RJ-45 port  - Realtek RTL8111E 10/100/1000 Controller
Wireless	Optional ( 802.11 b/g or 802.11 b/g/n)
Bluetooth	Optional
Audio	Realtek ALC662 HD Audio
Power Consumption	10W,max 23W
Chipset	Intel NM70
Front-Panel Connectors	• 1 × Power switch button ( Power LED ) • 1 × HDD LED • 1 × USB3.0 ports • 1 × Microphone port • 1 × Serial port • 3 × USB2.0 ports	• 1 × Power switch button ( Power LED ) • 1 × HDD LED • 1 × USB3.0 ports • 1 × Microphone port • 1 × Serial port • 3 × USB2.0 ports
Back-Panel Connectors	• 1 x 12V DC input • 1 x HD Video port • 1 x VGA port • 1 x RJ-45 port • 1 x USB 2.0 port • 1 x Speaker port	• 1 x 12V DC input • 1 x HD Video port • 1 x VGA port • 1 x RJ-45 port • 1 x USB 2.0 port • 1 x Speaker port
Operating System	- Support Windows 7 / Windows 8 /Windows 10/ Linux etc.
Packing list	Q180N , power line, power adapter, screw, VESA Mount Bracket ( 75mm x75mm ) , (antenna)

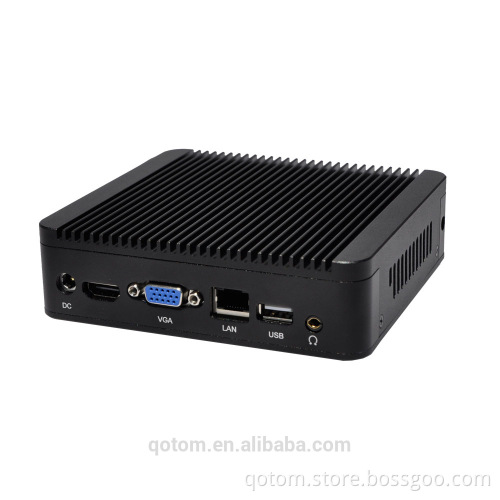

  Product Show   Back-Panel / Front-Panel Palm size: 135×128×38mm/45 mm
                    Q180N  Supports 720P / 1080P / Blue-Ray video.       We can pre-install Operating System for free, but it is unactivated that means we do not supply license. Windows 7 / Windows 8 / Ubuntu are options. Pre-install Windows 7 by default.   The package includes VESA Bracket. If you order wifi, the package will includes 2 antennas.   Market positioning:   1 living room HD computer TV in the living room below , as the network after connecting TV movie player , Internet , and viewing photos to use , but also can download machine , download movies ( large capacity drives )   2 business office preferred . Online shopping mall , shop office use, environmentally friendly energy , save electricity . Only 10W power down , corporate offices , saving space. Many advantages , the typical business office committed to make.   3 rooms dedicated computer -aluminum exterior , elegant, upscale . Placed hotel is very convenient , all- solid-state design , not damaged, no dry sound , low power consumption , energy saving.   4 education industry dedicated computer terminal than the low clouds have better performance , easier software compatibility , better color , faster , more suitable for the education sector .   5 industrial computers designed for industrial users reservation and serial port, and the design of the machine , can be fully qualified for industrial applications , all solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users .   6 users call center has a large number of mature applications     You can DIY the machine all by yourself! Tell us your demand and We will see if it's workable.  If you are not sure which one model you want, pls contact Cherry Ni for recommendation of the most suitable one for you.    About OEM:  OEM  available for company logo, appearance, ram and storage capacity.OEM Service is warmly welcome, but the MOQ is 100 pcs.   Customer feedback: God is our customer service purposes, we will promptly arrange production,delivered on time If there is anything we can do for you, we shall be more than pleased to do so.   This computer has been tested and it boots and works fine!!   Packaging & Shipping     1*mini pc 1*Terminal device
1*power adapter( Chinese standard / European standard / British standard / Australian standard / American standard ) 1*chassis
1*package box   1 PCS 1.5KG including package      27*23*9CM 20PCS in one carton  25KG including package   75*46*31CM
