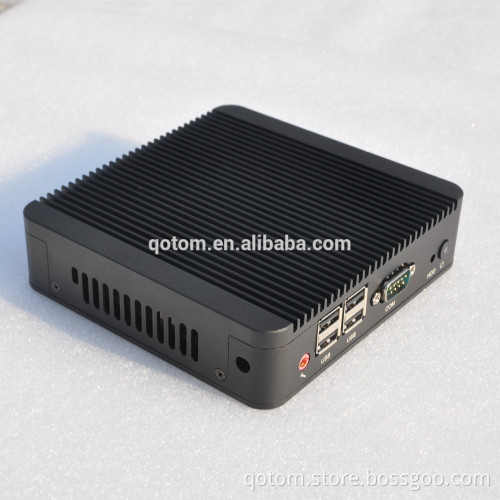

QOTOM Win 8.1 Mini PC Core i3 / Celeron 1037u processor 2GB RAM 128GB SSD VGA mini pc 2 lan port

  Please note:  With different processor onboard, Mini PC Q100S and Q210S have different price. Please contact Alisa Lin to get the latest price.

QOTOM Q Series Mini PC
Model	CPU	Main ports
Q100N	Intel Celeron 1037u processor, dual core 1.8 GHz	HDMI, VGA, LAN, 5 x USB2.0, Serial
Q100S		HDMI, VGA, 2 x LAN, 4 x USB2.0, Serial
Q210S	Intel Core i3-3217u/3227u processor, dual core 1.8 GHz	HDMI, VGA, 2 x LAN, 4 x USB2.0, Serial
Q180	Intel Celeron j1800 processor. Bay Trail 1M Cache, dual core 2.41 GHz , up to 2.58 GHz	HDMI, VGA, LAN, 4 x USB2.0, 1 x USB3.0, Serial
Q180S		HDMI, VGA, 2 x LAN, 3 x USB2.0, 1 x USB3.0, Serial
Q180P		HDMI, VGA, 2 x LAN, 3 x USB2.0, 1 x USB3.0, 4 x Serial
Q190	Intel Celeron j1900 processor. Bay Trail 2M Cache, quad core 2 GHz , up to 2.42 GHz	HDMI, VGA, LAN, 4 x USB2.0, 1 x USB3.0, Serial
Q190S		HDMI, VGA, 2 x LAN, 3 x USB2.0, 1 x USB3.0, Serial
Q190P		HDMI, VGA, 2 x LAN, 3 x USB2.0, 1 x USB3.0, 4 x Serial

Q series have similar case, they are our main products, you can contact Alisa Lin to get the full data sheet and quotation list.   Q series has 2 versions, S01 only support 1 x mSATA SSD, S02 supports 1 x mSATA SSD and 1 x 2.5 inch SATA SSD/ HDD.    Any questions or requirements like change the configurations, change the OS, declare true or lower value, print LOGO, customized service and so on, please contact us or leave a message. Product Description

Size	S01: 135×128×38mm	S02: 135×128×45mm
Weight	630g	820g
Color	Black
Onboard CPU	Q100S: Intel Celeron 1037u Processor ( 2M Cache, Dual core 1.80 GHz )
	Q210S: Intel Core i3-3217u / 3227u Processor (3M Cache, Dual core 1.80 / 1.90 GHz)
Memory	- 1 x Memory Slot, Supports 1333MHz/1600MHz DDR3 SO-DIMM Memory
Storage	- only support 1 x  mSATA port	- supports 1 x  mSATA SSD and 1 x  2.5" HDD  - Support SATA 3.0 6Gb/s
Processor Graphics	Q100S: Intel HD Graphics
	Q210S: Intel HD Graphics 4000
LAN	2 x RJ-45 port  - Realtek RTL8111E 10/100/1000 Controller
Wireless	Optional ( 802.11 b/g or 802.11 b/g/n)
Bluetooth	Optional
Audio	Realtek ALC662 HD Audio
Power Consumption	17W
Chipset	Q100S: Intel NM70
	Q210S: Intel HM75
Front-Panel Connectors	• 1 × Power switch button ( Power LED ) • 1 × HDD LED • 4 × USB 2.0 ports • 1 × Microphone port • 1 × Serial port
Back-Panel Connectors	• 1 x 12V DC input • 1 x HD Video port • 1 x VGA port • 2 x RJ-45 port • 1 x Speaker port
Operating System	Pre-install unactivated Windows 7 for test and DO NOT provide any Windows license   - Support Windows XP/ Windows 7 / Windows 8 /Windows 10/ Linux etc.
Packing list	Mini PC, Power adapter, VESA Mount Bracket, 2 antennas if you choose WiFi

  Advantages 1. Small, light and thin, with the VESA, QOTOM Mini PC can be hung on the back of screen to save space.    2. Superior Performance Connected to keyboard and mouse, QOTOM Mini PC can work as a common computer and the users can browse the Web, visit YouTube, work and so on. With HD Video port, it supports 720P / 1080P / Blue-ray video.    3. Various Configurations
Memory: 1 x Memory Slot; Hard disk: S01 support 1 x mSATA SSD; S02 support 1 x mSATA SSD and 1 x 2.5 inch SATA SSD / HDD Wi-Fi and Bluetooth are optional.   S01 is too thin to install 2.5 inch SATA HDD. It only support mSATA SSD.   S02 support 1 x mSATA SSD and 1 x 2.5 inch SATA SSD / HDD
4. Good Compatibility Mini PC Q100S / Q210S support Windows XP/ Windows 7/Windows 8/Windows 10/Linux OS. If the device is equipped with 2GB RAM, it is better to choose 32bit OS; with 4GB or 8GB RAM, you can choose 64bit OS. If you need drivers, please contact Alisa Lin.
5.  Low Power Consumption The power is 17W when it is on standby mode. The max is 23W when it under a full load. It can work 7 days* 24 hours.   Q100S / Q210S has fan by default. If you prefer to fanless device, please contact us. Motherboard can be sold separately   Product Uses QOTOM Mini PC can be applied to various domains: office, bank, hospital, hotel, supermarket, factory and so on. Our mini pc will be equal to the task, as long as common computer can work well. With competitive price, high quality and beautiful small case, mini PC is a good solution to save money and space. QOTOM Mini PC can connect to keyboard, mouse, common screen, external disk, printer, scanister, control monitor, cash register, advertising machine and so on.     Packaging & Shipping We use brown paper packing box, there is no words on it. The packing box contains Mini PC, power supply(adapter and plug), VESA and 2 antennas (if you choose wifi) Our forwarder arrange the shipment, DHL / FeDex/ EMS / TNT/ UPS, door to door. The delivery time is within 3 business days after payment completed if the quantity is less than 50 pieces.
