Dual Lan Core i3 mini pc Qotom-Q210S core i3-3217U dual core processor on board support win7/win 10/linux mini computer

Products Datasheet

	S01	S02
Size	135×128×38mm	135×128×45mm
Weight	630g	820g
Color	Black  - silver need booking	Black  -silver need booking
Onboard CPU	Intel® Core™ i3-3217U Processor (3M Cache, 1.80 GHz)
Memory	- 1333MHz/1600MHz DDR3 SO-DIMM Memory   - 1 x Memory Slot,Supports up to 8GB Memory
Storage	- mSATA port  - Large capacity mSATA SSD is optional	- supports mSATA SSD and 2.5" HDD  - Support SATA 3.0 6Gb/s
Onboard VGA	Intel® HD Graphics 4000
LAN	2 * RJ-45 ports  - Realtek RTL8111E 10/100/1000 Controller
Wireless	Optional ( 802.11 b/g or 802.11 b/g/n)
Bluetooth	Optional
Audio	Realtek ALC662 HD Audio
Power Consumption	17W,max 35W
Chipset	Intel HM75
Front-Panel Connectors	• 1 × Power switch button ( Power LED ) • 1 × HDD LED • 4 × USB2.0 ports	• 1 × Microphone port • 1 × Serial port(Optional)

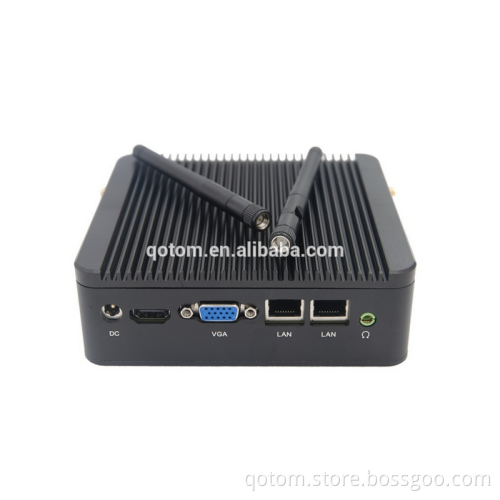

Back-Panel Connectors	• 1 x DC 12V DC input • 1 x HD Video port • 1 x VGA port	• 2 x RJ-45 ports • 1 x Speaker port
Operating System	Without the operating system by default   - Support Windows XP/Windows 7 / Windows 8 /Linux etc.
Packing list	Q210S,Power adapter,VESA Mount Bracket ( 75mm x75mm )

  Configuration for Selection
Memory:      2G/ 4G/ 8G  DDR3 RAM

Hard disk:    8G/ 16G/ 32G/ 64G/128G/256G SSD

                     500G/ 1T 2.5" HDD

WIFI and Bluetooth:  Optional   What configuration do you need?   Q210S has fan, but it works without noise.   Product Show        Q210S  Supports 720P / 1080P / Blue-Ray video.     We can pre-install Operating System for free, but it is unactivated that means we do not supply license. Windows XP / Windows 7 / Windows 8 / Ubuntu are options. Pre-install Windows 7 by default. The package includes VESA Bracket. If you order wifi, the package will includes 2 antennas.               Application   1. Independent Personal Computer:
With high-end hardware, can be used as an independent computer; also can be used as a parlour
computer connecting the TV Set to watch video, surf the internet.

2. Business office computer:
Cloud terminal used in business is extremely different from pc in surfing the net or display. Such
as: chatting online.Qotom mini pc is tiny and portable, power saving, highly block atmosphere, overall functions
and high speed.

3. Education Computer:
Used in Multimedia Teaching system, can install teaching ware for students and teachers.

4. Industrial Computer:
Industrial standard design, High stability and reliability; with Rs232 serial port for more
industrial needs; solid state design, fanless design.

5. Other Application:
Used as in Remote media player, advertising Player, POS system; also can be developed as other
products.

6. Customize:
Brand, appearance, function, ware and others, can meet special design.       You can DIY the machine all by yourself! Tell us your demand and We will see if it's workable.  If you are not sure which one model you want, pls contact Cherry Ni for recommendation of the most suitable one for you.   About OEM:  OEM  available for company logo, appearance, ram and storage capacity.OEM Service is warmly welcome, but the MOQ is 100 pcs.   This computer has been tested and it boots and works fine!!     Company Information     Packaging   1* mini pc 1* the holder 2* antennas (if order wifi) 1* package 1*12V 5A Power adapter and power plug.  There are 5 kinds of plug: Chinese standard / European standard / British standard / Australian standard /  American standard)     Shipment   1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!   2. The goods will be sent out within 3 working days after the full payment has been confirmed.   3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS.  And it’s about 8 to 14 working days by EMS.   Payment   1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!     2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.     3. Make sure all the detailed buyer information have been correctly and completely filled in.   Warranty   1.For all the mini pcs you bought from us, we provide a full one-year warranty.   2.We assure you that all the mini pc and accessories have been tested before delivery.   3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.   Feedback   1.Your early receipt confirmation and positive feedback are extremely important for us. We invite you to leave your comments and suggestions so that we can provide better service further.   2.Any problems can be discussed and settled through our efforts and patience. If you are not satisfied with the purchase, contact us, pls!
