36V Lithium Iron Phosphate Battery Charger

Specifications 36V Lithium Iron Phosphate Battery Charger

1. 3-Stage charging;

2. 3 LED Display;

3. Unique Digital Meter Display;

36V Lithium Iron Phosphate Battery Charger
  Item Code: C36A15 Input Voltage: AC100~240V Output Voltage: 43.8V Output Current: 15A Charging Modes: CC-CV   Smart Lithium Iron Phosphate Battery Charger Features:         1. 3 Stages Charging:1st-25% of rating current;2nd-50% of rating current;3rd-100% of rating current(equalizer).
2. Automatic Re-charging Battery:If the battery voltage<@3.1V/Cell after full charged,the charger will automatic re-charging the battery.
3. Short-circuit Protection:Charger O/P cut-off automatically when short circuit.
4. Overload protection:Charger O/P current-limited automatically when overload.
5. Reverse Polarity Protection:Charger O/P cut-off automatically when battery reverse connection.
6. Unique Digitalt Meter Display:Indicating charging voltage,current,battery capacity(percent and Ah)and charger status(timer,pre-charge,…).

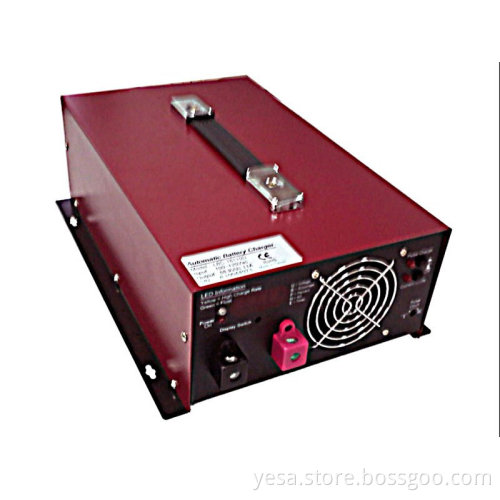

7. 3 LED Display:Red(Power),Green(Full Charged) & Orange(Equalizer Charge).          Product Pictures          Comparations between Normal LiFePO4 Battery Chargers and CA Series Charger

Functions	Normal Chargers	CA Intelligent Series Charger
Charging Efficiency	OK	Best
	Charging Modes: CC-CV Two-Stage	Charging Modes: CC-CV Four-Stage: 1) <2.5V/Cell Small Current=25% rated current; 2) <2.9V/Cell Big Current=50% rated current 3) >2.9V/Cell Middle Current=30% rated current 4) Shift to CV
Battery Protection	No	Yes
	Big charging current on CC	Once battery deep-discharged, two-stage pre-charge enables battery longer cycle life
Cell Balance	No	Yes
		User can set the charging time for CV according to battery capacity and performance, to improve cell balance and consistency.
Reverse Polarity Protection	No	Yes
Digital Meter Display	Limited	Completed
	Datas showed are very limited, and inaccuracy	Display shows instantaneous state of battery (voltage, current, capacity and charging stage)
DIY Settings	No	Yes
		User can set the charging values according to their own batteries, to achieve the highest charging efficiency (It needs customer modify the datas step by step to achieve best compatibilities)
