Smart 12V 24V 36V 48V 60V 72V Li-ion Battery Charger Lead acid Battery charger

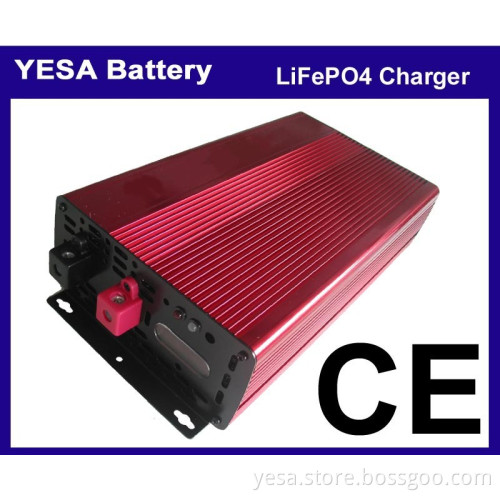

Product Description      Smart LiFePo4 Battery Charger
Features:       1.3 Stages Charging:1st-25% of rating current;2nd-50% of rating current;3rd-100% of rating current(equalizer).
2.Automatic Re-charging Battery:If the battery voltage<@3.1V/Cell after full charged,the charger will automatic re-charging the battery.
3.Short-circuit Protection:Charger O/P cut-off automatically when short circuit.
4.overload protection:Charger O/P current-limited automatically when overload.
5.Reverse Polarity Protection:Charger O/P cut-off automatically when battery reverse connection.
6.Unique Digitalt Meter Display:Indicating charging voltage,current,battery capacity(percent and Ah)and charger status(timer,pre-charge,…).
7.3 LED Display:Red(Power),Green(Full Charged) & Orange(Equalizer Charge).


Item Code	48V(16S)	LFP16S003A	LFP16S005A	LFP16S070A	LFP16S085A	LFP16S110A
Output	Equalizer Charge	58.4V±0.1V
	Rating Current (±0.2A)	3.5A	5A	7A	8.5A	11A
	Pre-chager1 (@<2.5V/Cell) Timer1(30minutes) (±0.2A)	0.9A	1.3A	1.7A	2.1A	2.7A
	Pre-chager2 (@<2.9V/Cell) Timer2(6minutes) (±0.2A)	1.8A	2.5A	3.5A	4.3A	5.5A
	<30% of Rating Current Timer3(2hours)(±0.2A)	1.05A	1.5A	2.1A	2.55A	3.3A
	Cut-Off(10% of Rating) (±0.2A)	0.35A	0.5A	0.7A	0.9A	1.1A
	Wattage	200W	300W	400W	500W	670W
Input	Efficiency	>85%(At Full Load)
	Voltage	100~240V(100~120V OR 200~240V)
Protection	Frequency	47~63Hz
	Battery Reverse	YES,Automatic Shutdown
	Short Circuit	YES,Automatic Shutdown
	Overload	YES,Current Limited
	Cooling Fan	Speed Controlled by Charging Stage
Mechanical	Dimensions(mm)	167*103*50	190*118*58	152*70*225	152*70*275	323*231*106
	Weight(KGS)	0.9	1.2	2.1	2.4	4.2

  Comparations between Normal LiFePO4 Battery Chargers and CA Series Charger

Functions	Normal Chargers	CA Intelligent Series Charger
Charging Efficiency	OK	Best
	Charging Modes: CC-CV Two-Stage	Charging Modes: CC-CV Four-Stage: 1) <2.5V/Cell Small Current=25% rated current; 2) <2.9V/Cell Big Current=50% rated current 3) >2.9V/Cell Middle Current=30% rated current 4) Shift to CV
Battery Protection	No	Yes
	Big charging current on CC	Once battery deep-discharged, two-stage pre-charge enables battery longer cycle life
Cell Balance	No	Yes
		User can set the charging time for CV according to battery capacity and performance, to improve cell balance and consistency.
Reverse Polarity Protection	No	Yes
Digital Meter Display	Limited	Completed
	Datas showed are very limited, and inaccuracy	Display shows instantaneous state of battery (voltage, current, capacity and charging stage)
DIY Settings	No	Yes
		User can set the charging values according to their own batteries, to achieve the highest charging efficiency (It needs customer modify the datas step by step to achieve best compatibilities)

  TRADE TERMS: For order F.O.B. Hong Kong.   DELIVERY LEAD TIME: 2-4 weeks after order confirmation and after receipt of L/C or T/T payment.   PAYMENT TERMS: For order, payment by T/T in advance.   DOCUMENT PROVIDED upon request: Either "Certificate of Origin - Re-export" or "Certificate of Origin - The People's Republic of China" will be provided on request.   PRODUCT LABEL: Factory Standard Label: Standard Label Customer Private Label: All artwork, film and printing costs are to be paid by customer. (minimum printing order is 2K per model)   PACKING: Standard Packing: Standard White Paper Box Standard Blister Packing: USD 0.20/set, with our standard color card * All moulding and tooling charges for customer special packaging will be on customer account. Customer color card: All artwork, film and printing costs are to be absorbed by customer. (Minimum printing order is 3K per model.)     WARRANTY: 1. We hereby warrant that our products have normal defect ratio 0-2%.
2. If a single item’s defect rate is beyond 2%. That will be seen as our quality anomaly; and all defective products will be returned for replacement with new ones, the return freight to be borne by clients,and the back freight done by us.     If your purchase order quantity over than  50pcs or even 100pcs, you could get much more competitive price from us.       For More IInformation Please Visit Our Website     www.yesabattery.com www.yesapower.com
