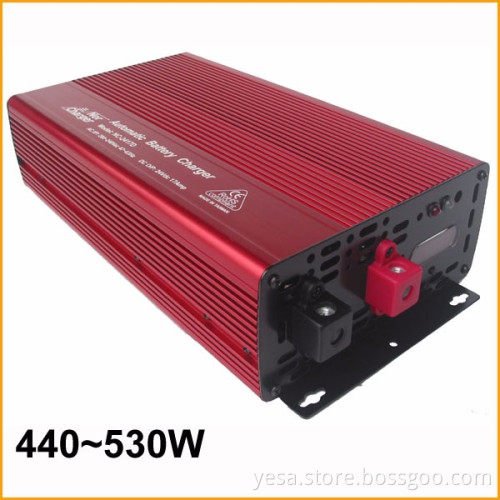

Smart 48V 7A 8A 11A 25A 5 stage Lead acid Battery charger

Search More

Power Tool Battery
Aeg	Al-Ko	Atlas Copco	Black & Decker	Bosch
Craftsman	Dewalt	Einhell	Festool	Firestorm
Flex	Gardena	Green Works	Hilti	Hitachi
Huskie	Lincoln	Makita	Max	Metabo
Milwaukee	National	Panasonic	Paslode	Ramset
Ryobi	Skil	Senco	Worx	Wurth
Power Tool Charger
Aeg	Atlas Copco	Black & Decker	Bosch	Dewalt
Firestorm	Hitachi	Makita	Milwaukee	National
Panasonic	Paslode	Ryobi	Universal(4.8~24V)
Cleaner Battery
Dyson	Euro-Pro Shark	Hoover	Indream	I-robot Roomba
Karcher	Panasonic	Samba	Mosquito Manet	Mint
Pro- Camcorder Battery
Anton Bauer	Canon	Hitachi	Idx	Ikegami
Jvc	Panasonic	Sony	Thomson/Philips
Two-Way Radio Battery
Alan	Alcatel	Bendix/King	Cobra	Hyt
Icom	Kenwood	Kyodo	Maxon	Midland
Motorola	Regency/Relm	Ritron-Patriot	Standard	Tait
Uniden	Wilson	Yaesu/Vertex	General Electric Ericsson

Product Description

Item Code	Rating Current (+/-0.2A)	Wattage	Voltage
AFP48V070A	7A	411W	AC100~120V AC200~240V
AFP48V080A	8A	470W
AFP48V110A	11A	660W
AFP48V250A	25A	1470W

  Features
1. Short-circuit Protection: Charger O/P cut-off automatically when short circuit
2. Overload Protection: Charger O/P current-limited automatically when overload.
3. Reverse Polarity Protection: Charger O/P cut-off automatically when battery reverse connection.
4. Automatic multi-rate charging function: Equalizer charge, floating charge and option for pulse charge and pre-charge
5. Unique LCD (or digitalt meter) Display: Indicating both charger status and battery level (or voltage, current, capacity, timer and charging time)
6. 3 LED Display: Red(power), green(floating charge) & orange(equalizer charge)
7.  Dual O/P Bank: Charger can charge two bateries at the same time

Charging Curve and LED indications



Specifications:

Item Code	AFP48V070A	AFP48V080A	AFP48V110A	AFP48V250A
Output
Equalizer Charge	58.8V+/-0.3V
Float Charge	54.8V+/-0.3V
Current (+/-5%)	7A	8A	11A	25A
Wattage	411W	470W	660W	1470W
Efficiency	> 85% (at full load)
Input
Voltage	AC100~120V OR AC200~240V
Frequency	47~63Hz
Protection
Battery Reverse	YES,by Fuse Burnt
Short Circuit	YESA
Overload	YESA
Cooling Fan	Speed Controlled by Charging Stage
Function SW
Pulse Charge	Enable pulse charge function instead of float charge
Constant	Limited O/P current to 50% of rating current
Display Selection	Option for AFPxxVxxxAD only
Dimensions(mm)	152*70*225	152*70*275	323*231*106	350*230*210
Net Weight	2.1kg	2.4kg	4.2kg	8.5kg

1. Other charging voltage model is available upon receiving request.
2. LCD display and Digital meter can be choosed, but a different price.

DC Output Connecting Wire Index
Connecting Wire (Black & Red)	Fit Item Code	Standard Accesory
18AWG/1.2M	AFP12V020A AFP240120A	YES
16AWG/1.2M	AFP12V060A AFP12V100A AFP24V040A AFP24V070A	YES
14AWG/1.2M	AFP240120A AFP24V140A AFP36V090A AFP36V110A AFP48V070A AFP48V080A	YES
12AWG/1.2M	AFP12V200A AFP12V250A AFP24V170A	YES
	AFP36V150A AFP48V110A	NO
10AWG/1.2M	AFP12V300A	YES
	AFP24V230A AFP48V250A	NO
8AWG/1.2M	AFP12V450A AFP24V450A AFP24V500A AFP36V330A	NO
4AWG/1.2M	AFP12V900A AFP12V1000A	NO



Connecting Terminal Choices
1	2	3	4	5	6

Remark: Connecting Wire and Terminal are available upon receiving customer's request.

Operations:
1. Connect the charger system to an earthed socket-outlet strongly.
2. Connect the alligator clips to battery terminals (red clip--->positive terminal; black clip--->negative terminal)
3. Turn on the power switch which is located on the front panel of charger, then the red LED lits and bi-color LED will confirm the charger's stage. And also the LCD display (or digital meter) will confirm the charger's stage & battery level (or charger's O/P voltage).



Notices:
1. AFP-Series was designed for charging Lead-Acid batteries only.
2. Against re-charging non-rechargable batteries.
3. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
4. Always place the charger in well ventiated and dry environments.
5. The battery maybe damaged if charging status LED cannot change to green after long time charge.
6. The battery charger was designed by aluminum housing as itself heat sink, avoid touching the case for safety purpose because the temperature is about 50 degree C on the case when charging   Terms & Conditions TRADE TERMS: For order F.O.B. Hong Kong.   DELIVERY LEAD TIME: 2-4 weeks after order confirmation and after receipt of L/C or T/T payment.   PAYMENT TERMS: For order, payment by T/T in advance.   DOCUMENT PROVIDED upon request: Either "Certificate of Origin - Re-export" or "Certificate of Origin - The People's Republic of China" will be provided on request.   PRODUCT LABEL: Factory Standard Label: Standard Label Customer Private Label: All artwork, film and printing costs are to be paid by customer. (minimum printing order is 2K per model)    WARRANTY: 1. We hereby warrant that our products have normal defect ratio 0-2%.
