LiFePO4 BMS 8S 24V 100A ALL IN ONE

Specifications 1.Continuous discharge current:100A

2.Peak discharge current: 115A

3.Max. charging current: 100A

 Lithium Phosphate battery Management System 48V/100A   Size(L*W*H):134.5mm * 130mm * 14.5mm(Without heat-sink)
Applied Battery:Li-Iron 8S (18~29.5V), 10~20Ah
Storage Temperature Range: -20 °C to 85 °C
Max Balance Capability:100mA
Maximum reading error of cell-voltage:±30mV   Max Pack Module:8S1P
Maximum Charge Current:100A@ 25 °C with 25W heatsink
Maximum Discharge Current:100A@ 25 °C with 25W heatsink

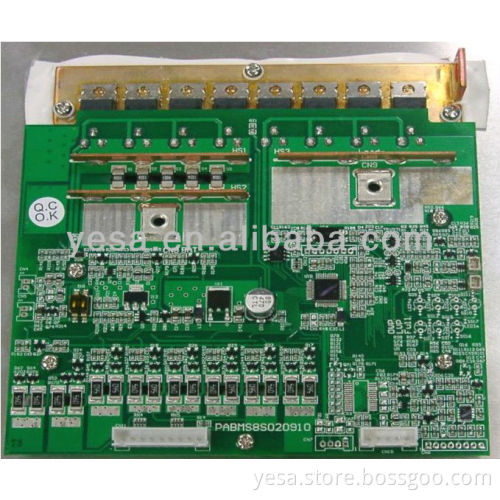

Over Discharge Current:115 A±10A@ 25 °C with 25W heatsink   Product Picture:      LFP ALL-IN-ONE series BMS     Shipping
1. We will ship the products within 15 working days after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL/TNT/EMS and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.
Payment
1.We accept T/T , PAYPAL , Western union and credit card.
2.If you prefer other payment terms,please contact us.
Replacement Policy
1.We provide one year warranty.
2.If items is defective , please notify us within 3 days of delivery
3.Any items must be returned in their original condition to qualify for a replacement.
4.The buyer is responsible for all the shipping cost incurred.
Advatages
1.Best price
2.Fast delivery
3.Top quality
4.First class after - sales service   Contact us
