LiFePO4 BMS for 12V 4S 150A Battery Pack

Specifications 1.Continuous discharge current:150A

2.Peak discharge current: 165A

3.Max. charging current: 100A

4.Balance Capacity:100mA

Lithium Phosphate battery Management System 12V/150A   Size(L*W*H):120mm * 109mm * 14.5mm(Without heat-sink)
Applied Battery:Li-Iron 4S (10~17V), 10Ah
Storage Temperature Range: -20 °C to 85 °C
Max Balance Capability:100mA
Maximum reading error of cell-voltage:±30mV
Max Pack Module:4S3P
Maximum Charge Current(AB4S100A-1):100A@ 25 °C with 25W heatsink
Maximum Discharge Current(AB4S100A-1):100A@ 25 °C with 25W heatsink
Maximum Discharge Current(AB4S100A-2):150A@ 25 °C with 25W heatsink
Over Discharge Current(AB4S100A-1):115 A±10A@ 25 °C with 25W heatsink(*)
Over Discharge Current(AB4S100A-2):165 A±10A@ 25 °C with 25W heatsink(*)

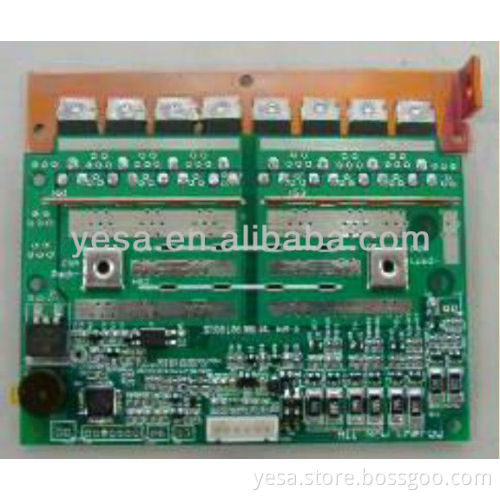

Gas Gauge tolerance:< 5%@ 25 °C, after 5 charging/discharging cycles (*) decrease 0.6A per 1 °C   Product Picture:      LFP ALL-IN-ONE series BMS   Shipping
