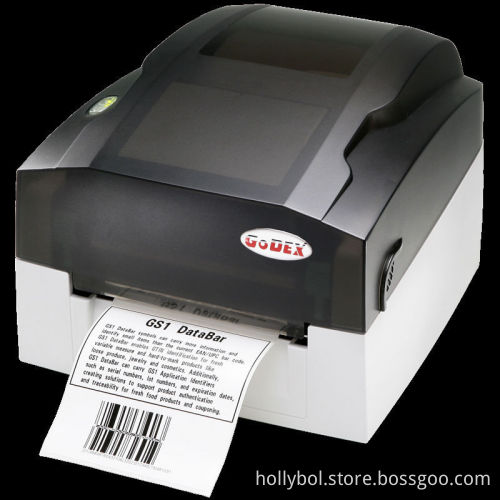

Godex EZ1105 barcode printer/godex

godex   Product Overviews   Entry Level & Cost Effective Printer Economy thermal transfer printer. Ideal for printing up to 1,000 labels per day. Very affordable and simple to operate.

	Entry Level & Cost Effective Printer
	0.5" Ribbon Core & 110M Ribbon Length; compatible with industry standard
	Exclusive "Auto-Adapt" sensor control for accurate indexing on all materials
	Integrated print engine and full sized label guides for precise printing
	Compatible with most major brand name labels and ribbons
	Easy-load label and ribbon system
	Seagull Scientific Windows drivers included
	USB 2.0 for fast label printing
	2MB Flash memory stores many label formats, graphics and fonts
	Free QLabel software with database function makes it easy to design and print labels
	Free USB cable and sample media included with every printer
	Options include: Ethernet or RS-232 connectivity interface

      Product Description

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	4 IPS (102 mm/s)
Print Width	4.25" (108 mm)
Print Length	Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
Processor	32 Bit RISC CPU
Memory	4MB Flash (2MB for user storage) / 8MB SDRAM
Sensor Type	Fixed transmissive sensor and reflective sensor
Media	Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.008” (0.20 mm) Max.  Label roll diameter: Max. 5” (127 mm) Core diameter: 1”, 1.5” (25.4 mm, 38.1 mm)
Ribbon	Types: Wax, wax/resin, resin  Length: 360’ (110 m)  Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max  Ribbon roll diameter.: 1.57“ (40 mm) Core diameter: 0.5” (12.7 mm)
Printer Language	EZPL, GEPL, GZPL
Software	Label design software: QLabel-IV (for EZPL only)  Driver: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008 DLL: Windows 2000, XP and Vista
Resident Fonts	Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B  Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
Download Fonts	Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code
Code Pages	CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode UTF8,UTF16BE,UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	USB V2.0
Control Panel	One Tri-color LED: Power (Green, Orange and Red)  Function Key: FEED
Power	Auto Switching 100-240VAC, 50-60Hz
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity	Operation: 30-85%, non-condensing.  Storage: 10-90%, non-condensing.
Agency Approvals	CE(EMC), FCC Class A, CB, CCC
Dimension	Length: 10” (254 mm) Height: 6.7” (170 mm) Width: 8.8” (224 mm)
Weight	5.5 lbs (2.5Kg) ,excluding consumables
Options	Internal RS-232 card  Ethernet 10/100Mbps print server (default off; disables USB when in use) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
