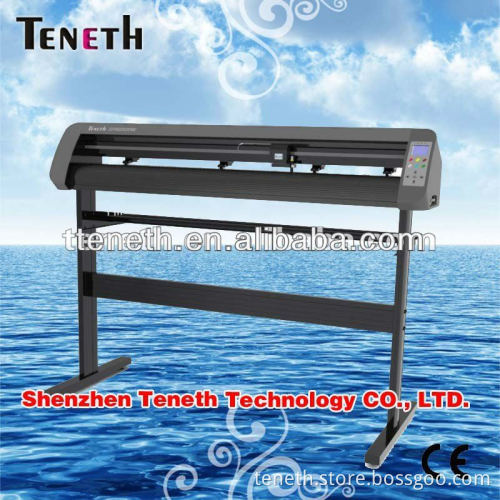

Curving cutting plotter TH1300/Cutting Plotter with LCD Display/Vinyl Cutter

Specifications Curving cutting plotter

1.unique function:copy function

2.can cut 2mm letter

3.3.0 touch screen

4.3 interfaces

      Product Description       Curving cutting plotter   Specification:

Model	TH1300
Media Way	Optional
Mainboard	32-bit ARM CPU,4MB,Hith-speed CACHE memory
Control panel	11 membrane buttons&2.4 inch touch screen
Driver	High speed,big power step motor,micro-step driver
Maximum paper feed width	1300mm
Maximum cutting with	1200mm
Maximum cutting speed	500mm/s
Curring force	0-500(digital adjustment)
Mechanical precision	0.025mm
Repeatable precision	<+-0.025mm
Type of plotter pen	All types diameter 11.4mm plotter pen
Plotter instruction	Compatible DM/PL,HP/GL
Interface	USB/U disk/Serial Port
Power supply	AC220V/110V,50Hz
Power consumption	<80W
Knife/blade	TENETH high quality blade
Operating environment	Temperature:5-35°C,Relative Humidity:30%-70%
Package size	1045*330*335mm
Gross weight	18KG

   More features:   1.32-bit ARM7 CPU, 4MB CACHE memory; 2. Scale adjustment function: only we have this function in China. So it is easy for you to operate.11 membrane buttons + 3.0 inch touch screen 3. Unique streamline body design and top setting control panel with the LCD display make the plotters much easier to operate while having the most beautiful look 4. More Interface for you: USB, U disk, serial Port, KUCO Can work without PC: when use USB Flash Driver 5. Ultraquietworkingcircuitdesignofimportedmodels,motordrive useimportedsubdivisiondriverIC,keepyouaway fromnoisepollution. 6. High-precision Steel Axes. Guarantee the tolerances 7. Our professional cutting force let it easy to draw rigid PVC, card paper and reflective film. 8. 4MB CACHE memory, KUCO will not scribble no matter how long or how big is you products. 9.Advancedaluminum,mattepainting,excellenttechnology,realluxurymodel   Picture show of machine The front of machine:    The back of machine:             Display(touch screen) and bottons:     3 interface:U disk/USB/Serial port   Double springs Pinch roller:   Steel axes:   Ruller:    Power:    Cutting 2mm small letter:   How we package our plotter:   Our factory:   Delivery of Cutting Plotters:   Main features of our Cutting Plotters: 1. Repeat function:1-500time   2. Cache capacity:4MB   3. High-precision steel axes. 4. Contour cut.( Model No. with L has this function)  5. Manufacturer   6. Precise rollers ensure smooth paper feeding and running. 7.Interface:USB/ U disk/ serial port (Bluetooth or WiFi for optional in additional);  8.Keeping drying with carton and plastic bag packed.  9.low noise, smooth cutting 10.Support Artcut, Flexi sign 10.0,Sign cut, CAD,CAD,AI etc.  11. Super Pressure 0-1000g: can cut super reflective film of our model No. with X
