USB reddot contour cut cutting plotter/Fabric pattern cutting machine/Card cutter

Specifications Sticker cutting plotter

1.repeat function

2.can cut 2mm letter

3.3.0 touch screen

4.3 interfaces:USB,U disk,serial port

      Product Description       Sticker cutting plotter   Specification:

Model	TH1300
Media Way	Optional
Mainboard	32-bit ARM CPU,4MB,Hith-speed CACHE memory
Control panel	11 membrane buttons&2.4 inch touch screen
Driver	High speed,big power step motor,micro-step driver
Maximum paper feed width	1300mm
Maximum cutting with	1200mm
Maximum cutting speed	500mm/s
Curring force	0-500(digital adjustment)
Mechanical precision	0.025mm
Repeatable precision	<+-0.025mm
Type of plotter pen	All types diameter 11.4mm plotter pen
Plotter instruction	Compatible DM/PL,HP/GL
Interface	USB/U disk/Serial Port
Power supply	AC220V/110V,50Hz
Power consumption	<80W
Knife/blade	TENETH high quality blade
Operating environment	Temperature:5-35°C,Relative Humidity:30%-70%
Package size	1045*330*335mm
Gross weight	18KG

     Features:   1.32-bit ARM7 CPU, 4MB CACHE memory; 2. Scale adjustment function: only we have this function in China. So it is easy for you to operate.11 membrane buttons + 3.0 inch touch screen 3. Unique streamline body design and top setting control panel with the LCD display make the plotters much easier to operate while having the most beautiful look 4. More Interface for you: USB, U disk, serial Port, KUCO Can work without PC: when use USB Flash Driver 5. Ultraquietworkingcircuitdesignofimportedmodels,motordrive useimportedsubdivisiondriverIC,keepyouaway fromnoisepollution. 6. High-precision Steel Axes. Guarantee the tolerances 7. Our professional cutting force let it easy to draw rigid PVC, card paper and reflective film. 8. 4MB CACHE memory 9.Advancedaluminum,mattepainting,excellenttechnology,realluxurymodel        material That the thickness is 0.25mm , such as sticker, reflect film, fluorescent film, abrasive blasting material, lacquer protective membrane, and blasting protective rubber that thickness is 1mm.

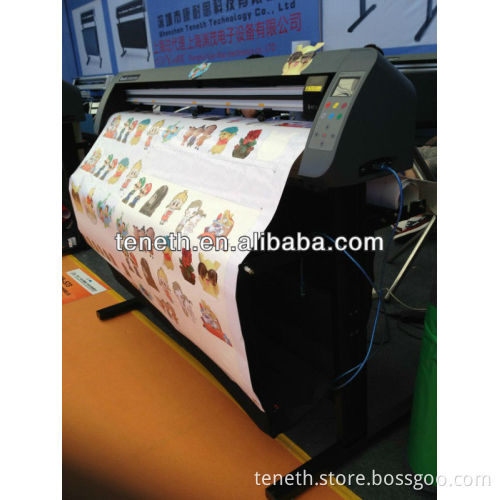

Picture show of machine   The front of machine:       The back of machine:          REAL PICTURES!!!           11 membrane buttons and 3.0 touch screen:   3 interfaces:U disk,USB and Serial port
