Cutting Plotter with contour cut Teneth KUCO TH740L/Vinyl sign Cutting Plotter/Cutting edge plotter

Specifications Cutting Plotter with contour cut

1.huge pressure(optional)

2.contour cut

3.can cut 2mm letter

4.3.0 touch screene

      Product Description       Cutting Plotter with contour cut   The features of our machine as follows: 1. More Interface: USB, U disk, serial Port, WIFI
2.Our machine can work without PC: our user can  do other  with  their computer when our cutter plotter working.
3.High-precision Steel Axes: Guarantee the tolerances
4.For our 4MB CACHE memory: our machine can repeat the words or images for 0-500 times(Repeat Function)
5.Noise less than 60 DB: keep our user away from noise pollution
6.Our control panel: 11 membrane and 3.0 LCD touching screen, and our machine have 5 kinds of backlight for select.
7.Our professional cutting force let it easy to draw rigid PVC, card paper and reflective film. 8.our machine can cut 2mm words and have the function of contour cut
9. 4MB CACHE memory, teneth will not scribble no matter how long or how big is you products. 10.Advancedaluminum,mattepainting,excellenttechnology,realluxurymodel 11.our cutting plotting can support Flexi software  12.This type of machine have the function of contour cut

Type	TH740L
Stand	floor
Mainboard	32-bit CPU,4MB high speed CACHE
Control panel	Large touching screen and 11 Membrane Buttons plus 3.0 LCD touching screen
Driver	leading shaft, high torque motor and micro-step driver
locating system	Precise electronic limited interface system and arbitrary original setting system
Max paper feed width	740MM
Maximum cutting width	730MM
Maximum cutting speed	1000mm/s
Maximum cutting length	unlimited
Knife press	0-1000g(Digital adjustment)
Mechanical rssolution	0.05mm
Repeatablity	<+-0.1mm
Knife(blade)	TENETH Imported alloy blade
Drawing pen	11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction	DM-PL/HP-GL Automatic Identification
Interface	USB/ SDcard/ serial port
Power supply	AC110V /220V±10%,50Hz/60Hz
Power consumption	<120W
working environment	temperature:+5-+35,humidity:30%-70%
Package dimension	1010*330*350mm
Package Weight	50kg
Size	910*265*265

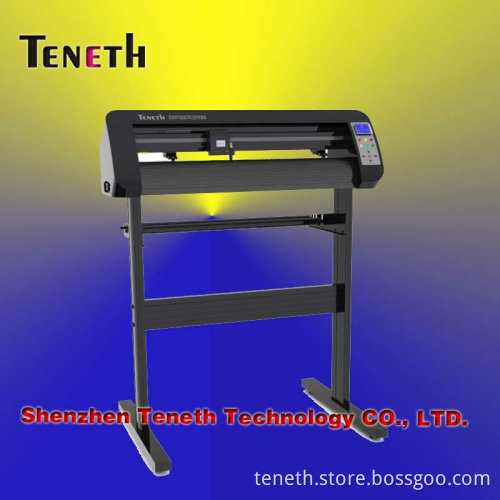

     Picture show   The front of machine:(stand optional)        REAL PICTURES!!! The back of machine:(stand optional)         (Optional function)1000G cutting force to cut reflective film:     11 membrane buttons and 3.0 touch screen:         3 interfaces:U disk,USB and Serial port
