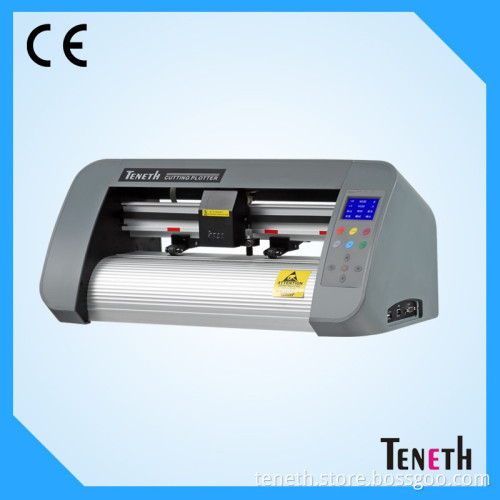

Teneth factory direct sale 330mm mini desktop cutting plotter TH330L

Factory Show Product Description

TH330XL: Cutting width:635mm Cutting force:1000G Cutting speed:800mm/s
Highlight:
1.High-precision,can cut 2mm words.

2.Automatic / Manul Contour cut.

3.32-bit ARM7 CUP,4MB, High-speed CACHE memory,available for offline cutting.Data will be saved in the memory even the power is off.

4.Super pressure 0-1000g,can cut super thick material.

5.Convenience repeat function, up to 500 times.

6.Completely support by Flexi sign 10.0, Sign cut, and CDR, CAD, Adobe Illustrator support direct output.

7.Interfaces:USB/ U disk/ serial port, Can work independently without PC. bluetooth or WiFi for optional.

8.High quality pinch rollers ensure smooth paper feeding and running.

9.CE Certification,ISO9001 Quality Certification.

10.We can deliver soon after comfirming your payment.

Model	TH330XL
Media way	Optional
Mainbord	32-bit ARM7 CPU,128MB,High-speed CACHE memory
Control Panel	11 sililcome buttons+3.0 touch screen
Driver	High speed,big power stepper motor
Maximum paper feed width	440mm
Maximum cutting width	330mm
Maximum cutting speed	800mm/s
Cutting Force	1000G
Mechanical Precision	0.025mm
Type of plotter pen	All types diameter 11.4mm plotter pen
Plotter Instruction	Compatible DMPL/HPGL
Interface	USB/U disk/Serial Port/WiFi
Power Supply	AC220V/110V,50HZ
Power consumption	<80W
Knife(blade)	TENETH imported blade
Operating environment	Temperature:5-35°C,Relative Humidity:30%-70%
Package size	710*330*395mm
Gross weight	20kg

3.0 inch touch screen+11 mambran buttons








Three interface:USB/Serial Port/U disk



Well designed pinch roller can guarantee make cutting smoothly
Detailed Images
1000G cutting force can cut rigid materials,like reflective film,PVC


High precision:cut 2mm letters .

Automatic contour cut by high accuracy position

---1 power line
---3 blade
---1 warranty card
---1 serial cable
---1 USB cable
---1 drawing pen
---1 CD


Packing & Delivery
Before packing,we would test all function to ensure the quality.

Teneth guarantee: 1.Prompt deliver 2.High quality 3.1 year warantee 4.Good after-sale 5.CE certification.
