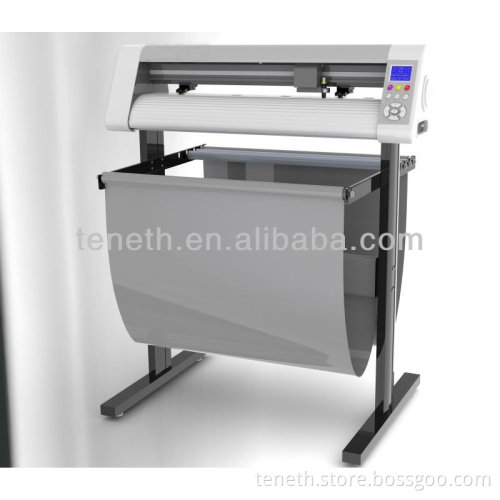

Teneth 2 feet / 24" contour cutting plotter

   Plotter/Cutting Plotter/Cutter plotter/Vinyl printer cutter/Vinyl cutter plotter   We are the Pioneer of Automatic contour cut .    Don't hesitate to have a try!       Remark:   As a manufacturer , we produce all different size of cutting plotters and accept custom order , if you have any requirement ,please contact me , I will do my best to serve for you !    Main features High-precision,can cut 2mm words. Automatic / Manul Contour cut. 32-bit ARM7 CUP,4MB, High-speed CACHE memory,available for offline cutting.Data will be saved in the memory even the power is off. Super pressure 0-1000g,can cut super thick material. Convenience repeat function, up to 500 times. Completely support by Flexi sign 10.0, Sign cut, and CDR, CAD, Adobe Illustrator support direct output. Interfaces:USB/ U disk/ serial port, Can work independently without PC. blue tooth or WiFi for optional. Pinch rollers ensure smooth paper feeding and running. CE Certification,ISO9001 Quality Certification. 4 points positioning   Technical parameters

Model	T-24XL (24'')	T-48XL	T-59XL
Mainboard	32-bit ARM7 CPU,4MB, HIGH SPEED CACHE memory
Control panel	11 environmental silicon buttons+3 inch LED touching screen
Driver	High power step motor , micro step driver
Max cutting size	740mm	1300mm	1600mm
Max media size	635mm	1205mm	1500mm
Cutting speed	0-800mm/s
Cutting force	0-1000g
Mechanical precision	0.025mm
repeat precision	<0.025
Types of plotter pen	All types diameter 11.4mm plotter pen
Plotter instruction	DMPL/HPGL
Interface	USB/Serial port
Power supply	AC90-120AV/50-60Hz
Power sumption	<120w
Blade	High quality teneth blade
Operating environment	5-+35°C,Humidity: 30%-70%
Package size	10600*330*395mm	1590*330*395	1900*350*440
Gross weight	30kg	45kg	60kg
Cutting length	Unlimited

    Highlight features:  Extreme ease-of-use 3.0 inch touchable screen and 11 membrane buttons makes the operation is more convenient . USB interface , sopport hot-swappable and it is equipped with serial port support the long distance data transmission.  repeat up to 500 times. High-precision steel ases ,just with 60db low noise . 64Mb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout. Support wireless control. Big power step motor , speed up to 800mm/s,with high accuracy,no noise , no vibration. CE certificated.   Main products    Cutting plotter , platform plotter , Engraving machine , Laser plotter , Optional Accessories      Video for your deep understanding     Automatic contour cutting   https://v.youku.com/v_show/id_XNDI5MDg0NDcy.html    Cut reflective film     https://v.youku.com/v_show/id_XMzA4OTc0NDk2.html       Detailed Pictures:             Carrige       Optical sensor     3.0 inch touch screen       Control Panel       3 interface (USB / U disk / Serial port)     Cut 2mm words (just our machine can do it)     Making differents signs you want       Factory       Package         Usage:    Sign industry ; Design and package industry; automotive protection;  For fashionable designs to apparel ;  painting , spraying and sandblasting ; advertising;  Traffic signs; Craft making; Printing; Posters making; Scutcheon       Contact information   Lilian Mobile:+86 13660136543 Skype:teneth06     QQ:2985383181   Teneth Technology company is a professional manufacturer of cutting plotters in China , we sell our products to all over the world and get high reputation for the stability quality and competitive price , so don't hesitate to have  a try !   For more information ,please contact me directly , I am glad to give you all the details .
