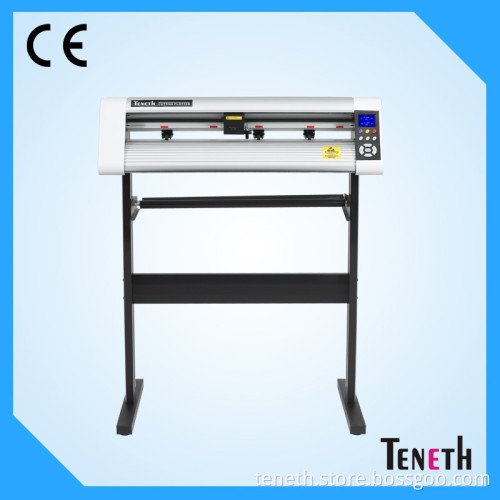

Cutting Plotter Machine/Teneth vinyl cutter/Cutting Plotter T-24L/Plotter 24" Automatic Contour cut

  Company Information    Welcome to visit our factory!   Product Description 24" Plotter Cutter Vinyl Cutting Plotter with Optical sensor!!!           Specification:

Model	T-24L
Stand	Optional
Mainboard	32-bit CPU,4MB high speed CACHE
Control panel	Large touching screen and 11  Buttons plus 3.0 LCD touching screen
Driver	leading shaft, high torque motor and micro-step driver
locating system	Precise electronic limited interface system and arbitrary original setting system
Max paper feed width	740MM
Maximum cutting width	635MM
Maximum cutting speed	800mm/s
Maximum cutting length	unlimited
Knife press	500g(Digital adjustment)
Mechanical rssolution	0.025mm
Repeatablity	<+-0.025mm
Knife(blade)	TENETH  Imported alloy blade
Drawing pen	11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction	DM-PL/HP-GL Automatic Identification
Interface	USB/ U disk/ serial port
Power supply	AC110V /220V±10%,50Hz/60Hz
Power consumption	<120W
working environment	temperature:+5-+35,humidity:30%-70%

     Main features   The features of our machine as follows:   1. More Interface: USB, U disk, serial Port, WIFI
2.Our machine can work without PC(work with U disk) 3.High-precision Steel Axes: Guarantee the tolerances
4.For our 4MB CACHE memory: our machine can repeat the words or images for 0-500 times(Repeat Function)
5.Noise less than 60 DB: keep our user away from noise pollution
6.Our control panel: 11 membrane and 3.0 LCD touching screen, and our machine have 5 kinds  of backlight for select.
7.Our professional cutting force let it easy to draw rigid PVC, card paper and reflective film. 8.our machine can cut 2mm words and have the function of contour cut
9. 4MB CACHE memory, teneth will not scribble no matter how long or how big is you products. 10.Advancedaluminum,mattepainting,excellenttechnology,realluxurymodel   Related Products                                    Pictures show of the Plotter       The front side of machine:High Cutting force to cut reflecitve film(Optional)    Control Panel (LCD touch screen & Silicon buttons):                                  Axes Roller:   Pinch Roller:     Ruller:   Carriage:   3 interfaces:U disk/USB/Serial Port:   Packaging & Shipping       Our Services     Certifications       Teneth  can accept customer design order owing to our well-known research and development team.     on the other hand, the quality is absolutely very very good.our price is competitive for agent or wholesalers.
