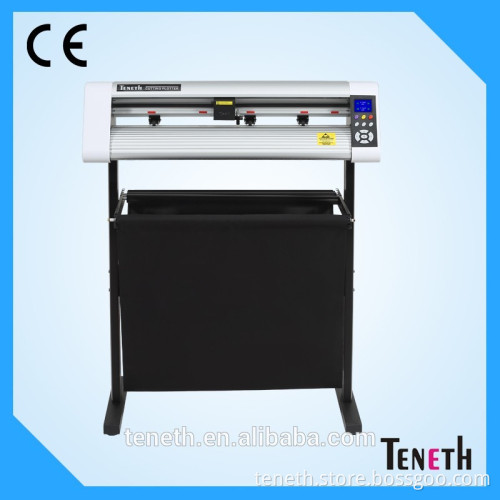

Teneth Wireless control contour good quality with vinyl cutting plotter

   Teneth Wireless control contour vinyl cutting plotter with good quality   Product Description                          Feature: 1.Wireless controls communication(optional)
2.Membrane buttons + LCD touch screen
3.SD memory storage, Work independently without PC.
4.Special software interface, can output directly from CorelDraw ,Ai
5.Support USB / serial communication port connect to PC 6. Steel Axis Of High-Precision  7.Pressure/Speed Regulation without Stoppage  8.Compatible alll kinds cutting software,CORELDRAW and AI.AUTOCAD 9.package: outside carton box with plastic bag,in order to protect its clean&dry during shippment.    Specifications for Teneth vinyl cutting plotter

Type	T48	T24
Stand	Vertical feeding paper Stand	none
Mainboard	32-bit CPU,4MB high speed CACHE
Control panel	Large touching screen and 11 Membrane Buttons plus 3.0 LCD touching screen
Driver	leading shaft, high torque motor and micro-step driver
locating system	Precise electronic limited interface system and arbitrary original setting system
Max paper feed width	1300MM	740
Maximum cutting width	1205MM	635
Maximum cutting speed	500mm/s
Maximum cutting length	unlimited
Knife press	0-1000g(Digital adjustment)
Mechanical rssolution	0.05mm
Repeatablity	<+-0.1mm
Knife(blade)	TENETH  Imported alloy blade
Drawing pen	11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction	DM-PL/HP-GL Automatic Identification
Interface	USB/ SDcard/ serial port
Power supply	AC110V /220V±10%,50Hz/60Hz
Power consumption	<120W
working environment	temperature:+5-+35,humidity:30%-70%
Package dimension	1582×330×420mm	1045*330*350mm
Package Weight	49kg	27kg

     Product Application  What could you do with our plotters? 1.Cut artwork created by yourself , such as sticker, logos and labels made from vinyl or iron-on material; 2. Can be used to make stickers, transfers, POP signs and graphics, shop signs, window signs logos and graphics; 3.Cut template out for sandblasting, etc; 4.Plotting for architectural designs, etc; 5.Think of your own or ask us to see if it works for your purposes.   Material: That the thickness is 0.25mm, such as sticker, reflect film, fluoresent film, abrasive blasting material, lacquer protective membrane, and blasting protective rubber that thickness is 1mm.    Standard Accessories 1) User Manual(CD) 2) 1 RS232 serial cable 3) 1 Power cable and 1 USB cable  4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7)  warranty card   Optioanl Accessories Optional function for you choose: --red dot position ,contour cutting; --bluetooth or wifi wireless transfer; --diamond reflective film cutting; --basket --huge pressuure Notice: 1 if you want to have optional functions for this cutting plotter ,please contact us before placing order; 2 there is different price between the standard configuration and optional features for the cutting plotter; 3 please comply with the above two points ,so as to avoid misunderstand on the machine   Our Services 1.One year free warranty, main parts are free of charge when problems happened  during the guarantee period. 2.Life time free maintenance service. 3.Free training course at our factory with professional engineers. 4.We provide the consumable parts at agent price when you need replacement 5.24 hours online service each day, free technical support with different languages. 6.We provide door to door technical support to agents, if necessary.   Contact us
