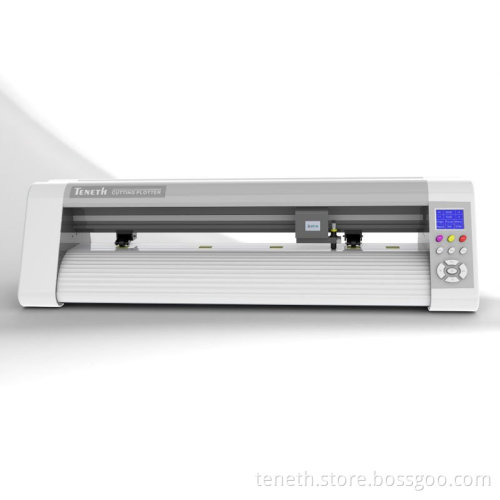

Teneth TS24 wireless control cutting ploter/servo drive/1000G pressure

  Product Description  Technical Specification

Model Number			TS24
Mainboard			32-bit CPU,4MB high speed CACHE memory
Control Panel			11 membrane buttons + 2.4 inch LCD touching screen
Driver			High speed,big power servo motor
Max Paper Feed   Width			740mm
Max Cutting Width			635mm
Max Cutting Speed			1000mm/s
Cutting Force			0—1000g
Machanical   Precision			0.025mm
Repeatable   Precision			±0.025mm
Plotter Pen			11.4mm diameter, all kinds of water, oil, atomic   plotter pens, poster pen
Plotter Instruction			DM-PL/HP-GL Automatic Identification
Interface			USB/U disk/serial port/Wifi
Power Supply			AC 220V/110V     50Hz/60Hz
Power Consumption			120W
Blade			TENETH imported alloy blade
Operating   Environment			Temperature:5—35°C, Relative humidity:30%-70%
Package			1045mm*330mm*395mm
Gross Weight			27kg

   Main feature 1,repeat function 2,64MB capacity 3,support for Mac OS system 4,11 mambrane buttons +3.0 inch LCD touching screen,easy to operate 5,U disck,USB output 6,super silence 7,high-precision steel axes,high cutting accuracy 8,huge pessure 9,ARM system optional 1,red light positioning  ,contour cut  2,Bluetooth/Wifi transmission 3,reflective film cutting 4,basket 5,floor stand 6,AAS function 7,Artcut software   picture show       large 3.0 LED touch screen,11 menbrane  buttons       Interface for USB,U disk,serial port Sample picture  Certification Packaging & Shipping   Packing :Standard carton package, reach export standard packing Install accessory included as below : -1pc Power cable -3pcs Blades -1pc Blade holder -1pc Warranty card -1pc USB cable -1pc Serial cable -1pcs Drawing pen -1pc CD   Shipping: 1set ,if small qty ,we usually help you choose HK FeDex /DHL Express, tracking number will be out on the next day after shipment. Customers usually choose by sea to ship,pls notice your destination port ,we could help you count the Sea Freight and arrival time All plotters shipping city in Shenzhen, we offer free door to door service.   Any questions,please don't hesitate to contact us.
