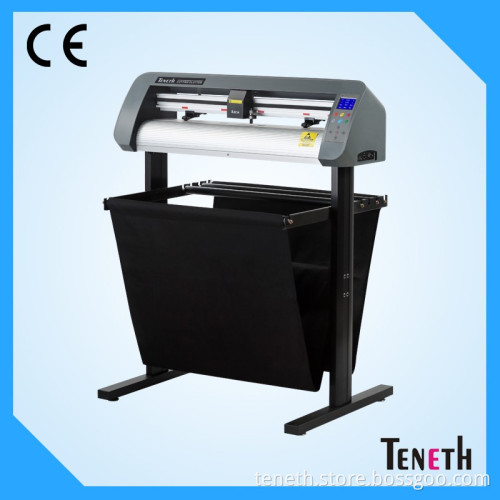

Accurate contour cutting cutting plotter with standard frame automatic servo motor vinyl cutting plotter

Accurate contour cutting cutting plotter with standard frame automatic servo motor vinyl cutting plotter      Product Features: 1.High Speed:32-bit ARM7 CPU,4MB CACHE memory; 2.Super Pressure:can cut super reflect film of our model no. with X ; 3.Prevent Stoppage:because of the high speed and high pressure function; 4.High Precision:even can cut 2mm little words of our Model No.:740; 5.Low noise,cut level and smooth:because of our High-precision Steel Axes and mainboard; 6.Can support all plot sofeware:AI,CAD,CORELERAW; 7.More Interface:USB,SD card,serial Port,blue teeth or WiFi for optional in additional; 8.Can work without PC:when use USB Flash Driver; 9.Operate Convenient:11 membrane buttons + LCD3.0 touch screen; 10.High Quality , High Stability:as use high speed ,big power step motor,micro step driver; 11.Contour cut:when used with sofeware FLEXI(Model no. with L has this function); 12.Scale adjustment function:only we have this function in China. Remark:with plastic package outside when shipping , can keep product dry and clean.                                                                                                                                                                                                                                     Main products: Cutting plotter , platform plotter , Engraving machine , Laser plotter , Optional Accessories   Usage: 1.Cut artwork created by yourself , such as sticker,, logos and labels made from vinyl or iron-on material; 2. Can be used to make stickers, transfers, POP signs and graphics, shop signs, window signs logos and graphics   Material: That the hickness is 0.25mm , such as sticker, reflect film, fluorescent film, abrasive blasting material, lacquer protective membrane, and blasting protective rubber that thickness is 1mm.       Technical Details:

Type	TS740A
Stand	none
Mainboard	32-bit CPU,4MB high speed CACHE
Control panel	Large touching screen and 11 Membrane Buttons plus 3.0 LCD touching screen
Driver	leading shaft, high torque motor and micro-step driver
locating system	Precise electronic limited interface system and arbitrary original setting system
Max paper feed width	740MM
Maximum cutting width	630MM
Maximum cutting speed	1000mm/s
Maximum cutting length	unlimited
Knife press	0-1000g(Digital adjustment)
Mechanical rssolution	0.05mm
Repeatablity	<+-0.1mm
Knife(blade)	TENETH Imported alloy blade
Drawing pen	11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction	DM-PL/HP-GL Automatic Identification
Interface	USB/ SDcard/ serial port
Power supply	AC110V /220V±10%,50Hz/60Hz
Power consumption	<120W
working environment	temperature:+5-+35,humidity:30%-70%
Package dimension	1045*330*350mm
Package Weight	35kg
Size	1480*265*265
