USB Cutting Plotter/USB driver Cutter Plotter/Plotter Sticker Cutting Machine with contour cut

Specifications USB Cutting Plotter

1.contour cut(can cut picture's shape)

2.can cut 2mm letter

3.3.0 touch screen

4.3 interfaces

USB cutting plotter      Specification:

Type	TH740XL
Stand	floor stand
Mainboard	32-bit CPU,4MB high speed CACHE
Control panel	Large touching screen and 11 Membrane Buttons plus 3.0 LCD touching screen
Driver	leading shaft, high torque motor and micro-step driver
locating system	Precise electronic limited interface system and arbitrary original setting system
Max paper feed width	740MM
Maximum cutting width	630MM
Maximum cutting speed	500mm/s
Maximum cutting length	unlimited
Knife press	0-1000g(Digital adjustment)
Mechanical rssolution	0.025mm
Repeatablity	<+-0.025mm
Knife(blade)	TENETH Imported alloy blade
Drawing pen	11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction	DM-PL/HP-GL Automatic Identification
Interface	USB/ SDcard/ serial port
Power supply	AC110V /220V±10%,50Hz/60Hz
Power consumption	<120W
working environment	temperature:+5-+35,humidity:30%-70%
Package dimension	1045*330*350mm
Package Weight	27kg
Size	910*265*265

    We offer 440mm,740mm and 1300mm width for your choice!!!   More features: 1.More Interface: USB, SD card, serial Port, WIFI
2.Our machine can work without PC 3.High-precision Steel Axes: Guarantee the tolerances
4.For our 4MB CACHE memory: our machine can repeat the words or images for 0-500 times(Repeat Function)
5.Noise less than 60 DB: keep our user away from noise pollution
6.Our control panel: 11 membrane and 3.0 LCD touching screen, and our machine have 5 kinds  of backlight for select.
7.Our professional cutting force let it easy to draw rigid PVC, card paper and reflective film. 8.our machine can cut 2mm words and have the function of contour cut

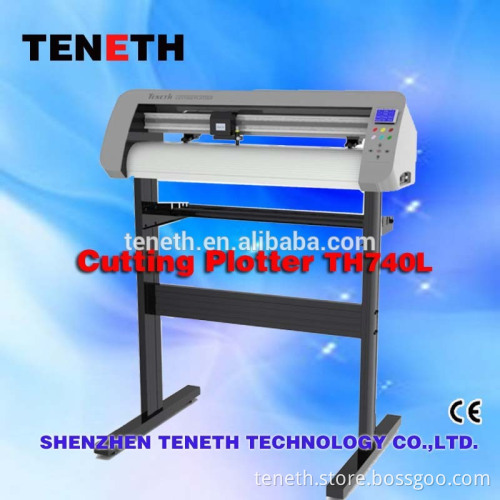

9.Advanced aluminum,matte painting,excellent technology,realluxury model      Picture show   The front of machine:(stand optional)        Real Pictures!!!     The back of machine:(stand optional)         (Optional function)1000G cutting force to cut reflective film     11 membrane buttons and 3.0 touch screen:                     3 interfaces:U disk,USB and Serial port                     Roller axis:                       Carriage:         Roller holder:         Sample of cutted letters:2mm,3mm,4mm and 5mm         can cut signs,labels and other graphics you want           Package:(plotters are in stock now!)       Our factory:             Delivery of cutting plotters:             Main features:   1.Repeat Function.  2.Mainboard  32- bit ARM7 CPU,4MB,High-speed CACHE memory. 3.Largest Dispay: 3.0 inch LCD Touch screen 4.5 colors of backlight. 5.More Interfaces: USB/SD card/Serial Port/WiFi/Bluetooth 6.Low noise,even lower than 60dB. 7.High-precision Steel Axes 8.Support all Windows 9.Package,with a plastic bag outside the carton box  to keep clean and dry.           We are manufacture of Cutting Plotter!       Our machine have many kinds of function for your choose!               1.more interfaces :SD/USB/Serial port 2.optional functions for you to choose:  -Contour cut:cut picture's contour or shape   -Media way   -Basket   -Huge pressure(1000G)   -WIFI or Bluetooth   -Mac OS X system 3.our machine's control panel have more 11membrane buttons and  3.0 inch LCD touch screen , have two language:Chinese and English 4.5 colors of backlight for your choice 5.this machine can still working without computer for our 4MB CACHE memory 6.High precision steel axes 7.Support CDR/AI/CAD 8.Can cut 2mm words/letters               Main Application:   Car sticker Transfer of T-shirt Reflective film Sticker/Label       The accessory included within the machines when you purchase:   -1 Power line -3 Blades -Screws -1 Warranty card -1 Serial cable -1 USB cable -1 Drawing Pen -1 CD
