TH1300 Pattern Roller Cutter Plotter Blade Knife of sticker and reflection coating

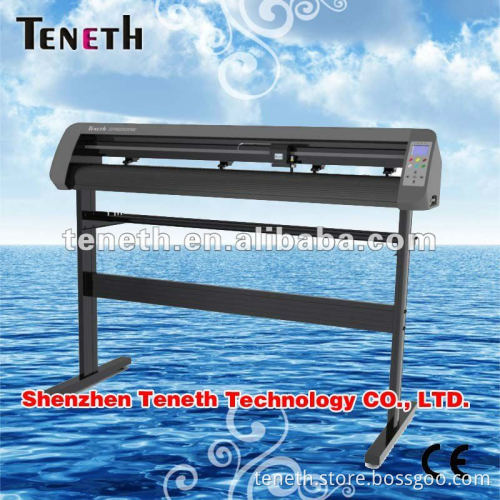

                                  1300mm Cutting Plotter TH1300 with floor stand   Features:   Technical Details:

Type	TH1300
Stand	Vertical feeding paper Stand
Mainboard	32-bit CPU,4MB high speed CACHE
Control panel	Large touching screen and 11 Membrane Buttons plus 3.0 LCD touching screen
Driver	leading shaft, high torque motor and micro-step driver
locating system	Precise electronic limited interface system and arbitrary original setting system
Max paper feed width	1300MM
Maximum cutting width	1200MM
Maximum cutting speed	500mm/s
Maximum cutting length	unlimited
Knife press	0-500g(Digital adjustment)
Mechanical rssolution	0.05mm
Repeatablity	<+-0.1mm
Knife(blade)	TENETH  Imported alloy blade
Drawing pen	11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen
Drawing instruction	DM-PL/HP-GL Automatic Identification
Interface	USB/ SDcard/ serial port
Power supply	AC110V /220V±10%,50Hz/60Hz
Power consumption	<120W
working environment	temperature:+5-+35,humidity:30%-70%
Package dimension	1600×350×440mm
Package Weight	49kg
Size	910*260*260mm

    Main products:   Cutting plotter , platform plotter , Engraving machine , Laser plotter , Optional Accessories   Material:   That the hickness is 0.25mm , such as sticker, reflective film, fluorescent film, abrasive blasting material, lacquer protective membrane, and blasting protective rubber that thickness is 1mm.
