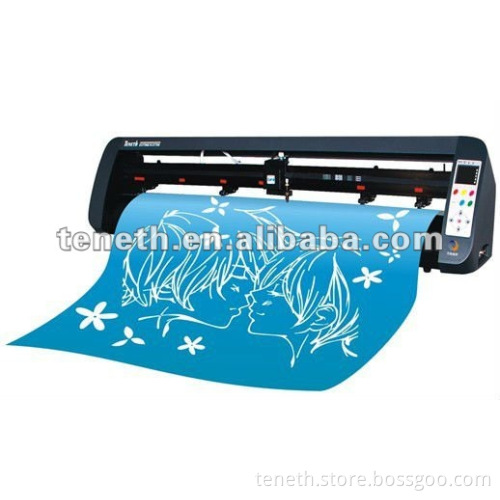

TENETH Contour Cutting Plotter CE&RoHS&ISO

          TENETH Contour Cutting Plotter CE&RoHS&ISO TP740           Features   1.Unique streamline body design and top setting control panel with the LED display make the plotters much easier to operate while having the most beautiful look.   2.New micro step arithmetic let the plotters have high quality and smoother curve with high speed.   3.ArtCut software(offered for free,Windows 98/NT/2000/XP compatible) makes its CT series compatible with may HPGL software,such as AUTOCAD,CORELDRAW,Flexi,Artcut.   4. High quality aluminum alloy makes the plotter 20% lighter and the special disposal to the surface makes  them fadeless for some years.   5.4 sets press roll,keep cutting stable and vinyl sticker run stable.     Specifications:

Model	TH740
Media way	Optional
Mainboard	32-bit ARM7 CPU,4MB,High speed CACHE memory
Control Panel	11 membrane buttons + 3.0 LED touch screen
Driver	High speed,big power step motor,micro-step driver
Paper feed width	740mm
Cutting width	635mm
Cutting Speed	500mm/s
Cutting force	0~1000(digital adjustment)
Mechanical precison	0.025mm
Repeatable precision	0.025mm
Type of plotter pen	All types diameter 11.4mm plotter pen
Plotter instruction	Compatible DM/PL,HP/GL
Interface	USB/SD card/Serial Port
Power supply	AC220V/110V,50Hz
Power consumtion	Less than 120W
Knife(blade)	Teneth high quality blade
Operating environment	Temperature: 5~35
Package size	1060*350*370
Gross weight	20KG
