pure copper passed fluke test of 25 pair cat 6 cable

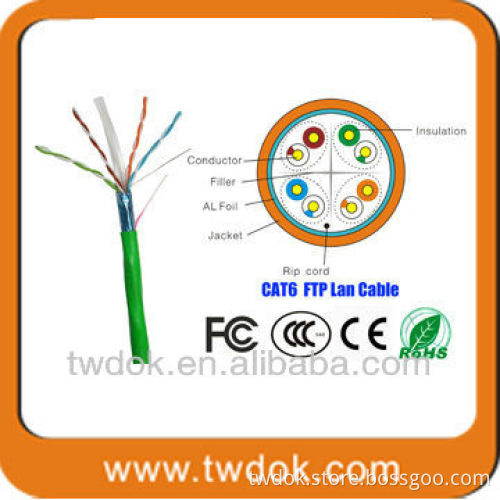

Specifications ftp cat6 lan cable

1.Cat5e&cat6 Patch Cord UTP/FTP/STP

2.Pure Copper TIA/EIA-568-B

3.PVC/LSZH Jacket

Cat6 UTP Lan Cable Products Description   -Application   POTS.T1& T1 fractional ,ISDN basic & primary Rate.4/6 Mbps Token Ring (IEEE 802.5). 10BAST-T(IEEE802.3),100Mbpa TP-PMD.52/155Mbps ATM(ATM Forum), 100BAST-T4(fast Ethernet) 100VG-AnyLAN (IEEE802.12),100 BAST-T(Fast Ethernet),1 Gbps Ethernet(IEEE 802.3)   -Electrical Performance (At 250Mhz)   1.0-100.0 Mhz Impendance(ohms)100±15   100.0-250.0Mhz Impendance(ohms)100±22   Impendance Delay screw(ns/100m)<45   Pair to Ground Capacitance Unbalance (PF/100m)330Max   Conductor DC resistance 20%(ohms/km)<73.2   Resistance Unbalance(%)  5   Test object     jacket   Test material    PVC   Before Tensile strength(Mpa) ≥13.8   Aging Elongation(%)  ≥100   Aging condition(C*hrs)  100*240   After Tensile Strength(Mpa)  ≥85% of unaged   Aging Elongation(%)    ≥ 50% of unaged   Cold bend(-20 ± 2 °C*4hrs)   No crock         Cable Data   Conductor     Solid bare copper   AWG      23   Conductor Dia(mm)    0.57   Insulation         PE   Average thickness(±0.03mm)  0.22   Min point thickness:   0.18   Insulation  Dia(±0.3mm)  1.02   Twisting lay length(mm)    30undemeath   Cabling lay length(mm)    200 undemeath   Jacket  PVC/LSZH   Average thickness    0.5   Min point thickness  0.43   Outer Dia (±1.0mm)  6.0   Weight Nom(kg/km)    42   Core color:    Blue-white/blue                           Orange-white/orange                           Green-white/green                           Brown-white/brown   Typical cable performance      The Pictures     The Certifications The Exhibition Why choose us ? We specialize in manufacturing all types of networking products such as cables, patch panels, jacks,plugs, face plates, cabinets, fiber cables, patch cords, switches, routers, and wireless equipment.Our own brand is "TEDE". We also act as agents of many famous companies. We have 8 automatic production lines operated by skillful workers. All of our products are produced strictly according to the ISO9001 standards,we offer fine after-sales  services. If there is any question you want to know,please contact us at any time. Orders Our products are popular with North America, South America, Eastern Europe, Western Europe, Central America, Northern Europe, Southern Europe,the Middle East,Africa. And they achieved good reputation at the same time. We can also offer OEM service according to  customer's requirements. Always welcome your order! Delivery In general, we deliver goods within 7-10 days after we received your payment.Bye the way,we could provide competitive shipping terms service for u,by sea,by air,or by express delivery. Of course, you can appoint another .   °C
