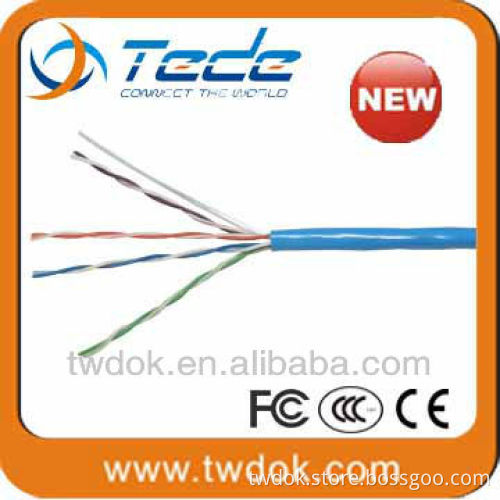

utp/ftp/sftp pure copper passed fluke test of double cat6 cable

Specifications ftp cat6 lan cable

1.Cat5e&cat6 Patch Cord UTP/FTP/STP

2.Pure Copper TIA/EIA-568-B

3.PVC/LSZH Jacket

Cat6 UTP Lan Cable Products Description  -Application   POTS.T1& T1 fractional ,ISDN basic & primary Rate.4/6 Mbps Token Ring (IEEE 802.5). 10BAST-T(IEEE802.3),100Mbpa TP-PMD.52/155Mbps ATM(ATM Forum), 100BAST-T4(fast Ethernet) 100VG-AnyLAN (IEEE802.12),100 BAST-T(Fast Ethernet),1 Gbps Ethernet(IEEE 802.3)    -Electrical Performance (At 250Mhz)  1.0-100.0 Mhz Impendance(ohms)100±15  100.0-250.0Mhz Impendance(ohms)100±22  Impendance Delay screw(ns/100m)<45  Pair to Ground Capacitance Unbalance (PF/100m)330Max  Conductor DC resistance 20%(ohms/km)<73.2  Resistance Unbalance(%)  5  Test object     jacket  Test material    PVC  Before Tensile strength(Mpa) ≥13.8  Aging Elongation(%)  ≥100  Aging condition(C*hrs)  100*240  After Tensile Strength(Mpa)  ≥85% of unaged  Aging Elongation(%)    ≥ 50% of unaged  Cold bend(-20 ± 2 °C*4hrs)   No crock   Cable Data  Conductor     Solid bare copper  AWG      23  Conductor Dia(mm)    0.57  Insulation         PE  Average thickness(±0.03mm)  0.22  Min point thickness:   0.18  Insulation  Dia(±0.3mm)  1.02 Twisting lay length(mm)    30undemeath Cabling lay length(mm)    200 undemeath Jacket  PVC/LSZH Average thickness    0.5 Min point thickness  0.43 Outer Dia (±1.0mm)  6.0 Weight Nom(kg/km)    42 Core color:    Blue-white/blue                       Orange-white/orange                      Green-white/green                      Brown-white/brown   The Pictures     The Certifications The Exhibition Why choose us ? We specialize in manufacturing all types of networking products such as cables, patch panels, jacks,plugs, face plates, cabinets, fiber cables, patch cords, switches, routers, and wireless equipment.Our own brand is "TEDE". We also act as agents of many famous companies. We have 8 automatic production lines operated by skillful workers. All of our products are produced strictly according to the ISO9001 standards,we offer fine after-sales  services. If there is any question you want to know,please contact us at any time. Orders Our products are popular with North America, South America, Eastern Europe, Western Europe, Central America, Northern Europe, Southern Europe,the Middle East,Africa. And they achieved good reputation at the same time. We can also offer OEM service according to  customer's requirements. Always welcome your order! Delivery In general, we deliver goods within 7-10 days after we received your payment.By the way, we could provide competitive shipping terms service for u,by sea,by air,or by express delivery. Of course, you can appoint another .
