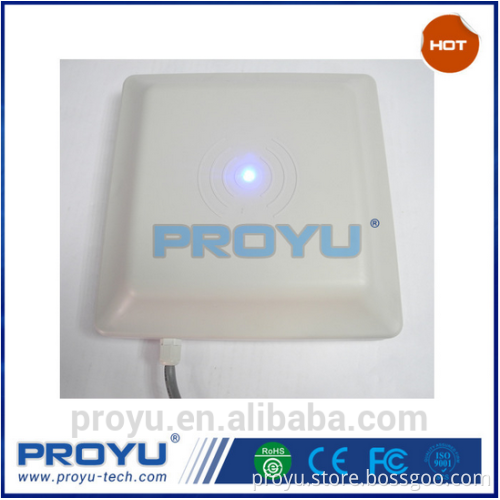

long distance card reader, access control reader distance 30-100CM PY-LR1

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

long distance card readerr, access control reader distance 30-100CM PY-LR1 Technology Parameter

Frequency Range	902MHz~928MHz (Ajustable for local regulations)
Tag protocols	ISO18000-6BEPC Class 1EPC Class 1 GEN 2
Operating Method	FHSS or fixed frequency(setted by software)
Antenna ports	Built-in 12dBi vertical polarization antenna
Max RF power	30 dBm
Power smoothness	0.5 DB
RF power range	20~30 dBm,Adjustable by software
Identify tag mode	Identify tag mode can be setted as: Reads the tag in fixed time automatically or; read tag after external triggering or software command.
Identify tag time	<8ms(Identify single tag)
Reading/Writing tag time	No more than 5ms every 8 bytes when reading, 25ms every 4bytes when writing.
Reading/Writing tag distance	More than 8m when reading, writing range is 70% of reading range(depend on antenna)
Communication interface	RS-232, RS-485, Wiegand, USB
Input/output	1triggering input, 2 electric relay outoput
Power supply	DC 9V/DC12V
Power consumption	≤5W
Size	460mm×460mm×50mm
Package dimension	540mm×540mm×140mm
Gross Weight	4.82kg
Net Weight	2.66kg
Work Temperature	45`C~75`C 49°F~ 167°F
Storage Temperature	50`C~85`C 58°F~ 185°F
Work status indication	Buzzer

Applications Intelligent traffic such as ETC, customes border-crossing, parking lot, automatic weighing etc. Logistics such as container management, pallet management, asset tracing etc. Ticketing& access control Pharmaceuticals such as medical waste management,etc
