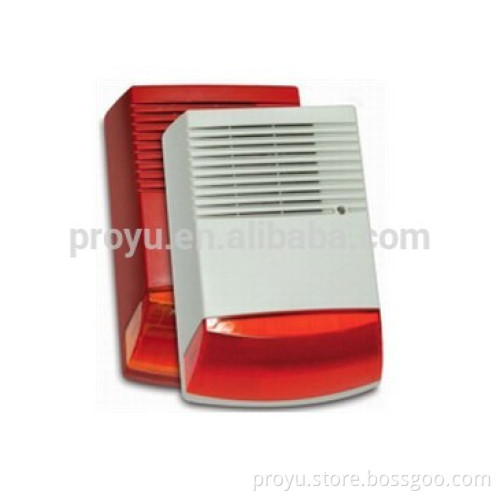

Outdoor alarm siren with strobe light for burglar alarm system PY-SIR22
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China (Mainland) |
---|
Product Description
Product Description
Outdoor alarm siren with strobe light for burglar alarm system PY-SIR22 Feature: SPL: 120db
Fundamental Frequency : 1850Hz
Siren Tone: Yelp
Frequency Range: 1300-2400Hz
Flashlight: Lamp 12VDC/5W
Power supply Voltage: 13.8-14.2VDC
Charge Current Limit: 250mA
Current Consumption(Speaker and strobe): Standby:8Ma Alarm 1600mA/13.8VDC
Maximum Power: 5W(peak)
Trigger Level: Trigger Low=Max.1VDC Trigger High=Min.9VDC
Siren Alarm Period: F.T-Follow trigger TMR-3min
Input Impedance(Alarm/Flash/Trigger): 1K ohm
Tamoer Switch: N.C 28VDC Maximum current 0.1A-open when cover is removed
Backup Battery: Rechargeable lead Acid Battery 12VDC up to 7.2Ah
Low Battery: 8VDC+/-0.3VDC
Material: External Box:ABS(3mmThickness) Internal cover:metal(0.8mm thickness)
Dimensions of Unit: L=270mm*W=193mm*H=100mm
Weight(without battery): 1.85Kg
Operating Temperrature Range: -30 to+6.
Case Protection Level: Water splash resistant
Plastic ABS with UV Protection
Fundamental Frequency : 1850Hz
Siren Tone: Yelp
Frequency Range: 1300-2400Hz
Flashlight: Lamp 12VDC/5W
Power supply Voltage: 13.8-14.2VDC
Charge Current Limit: 250mA
Current Consumption(Speaker and strobe): Standby:8Ma Alarm 1600mA/13.8VDC
Maximum Power: 5W(peak)
Trigger Level: Trigger Low=Max.1VDC Trigger High=Min.9VDC
Siren Alarm Period: F.T-Follow trigger TMR-3min
Input Impedance(Alarm/Flash/Trigger): 1K ohm
Tamoer Switch: N.C 28VDC Maximum current 0.1A-open when cover is removed
Backup Battery: Rechargeable lead Acid Battery 12VDC up to 7.2Ah
Low Battery: 8VDC+/-0.3VDC
Material: External Box:ABS(3mmThickness) Internal cover:metal(0.8mm thickness)
Dimensions of Unit: L=270mm*W=193mm*H=100mm
Weight(without battery): 1.85Kg
Operating Temperrature Range: -30 to+6.
Case Protection Level: Water splash resistant
Plastic ABS with UV Protection
