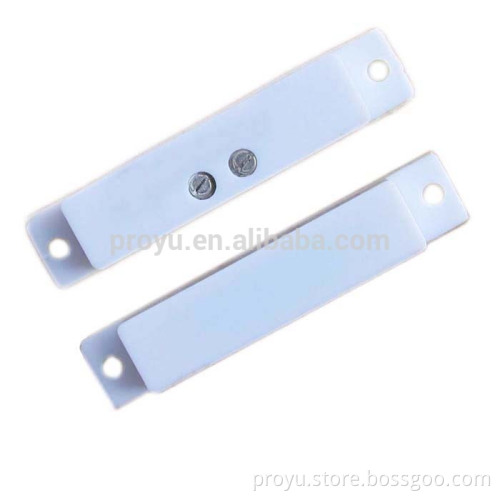

Wired Door Window Magnetic Contact Safety Sensor Magnetic contact PY-C40

Wired Door Window Magnetic Contact Safety Sensor Magnetic contact PY-C40   Specification                surface mounted magnetic switch ideal for wooden door/ window   PY-C40 surface mount contact with terminals is designed for window or door applications where a surface mount contact is preferred. Thanks to its unique design, the PY-C40 is fast and easy to install. The switch and magnet are incorporated into the housings. Simply mount the switch and magnet using the tape or mounting screws provided and connect the wire to the terminal blocks. The 5C-40 features an attractive, low-profile design.   1. Housing: ABS material ; fireproof ABS housing is available on request 2.Color: white/brown 3.Gap: 15-25mm 4.Screw down or super adhesive, slim stype and intaller easy     Dimension(mm) Order information

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PCS)
NC-ABS-1525	NC	ABS	15-25	0.5A/100V/10W/200mΩ	500
NO-ABS-1525	NO	ABS	15-25	0.25A/30V/3W/200mΩ	500
