12v 0.5a 13.5v ts-1012c 11V 32v ac/dc power adapter charger supply

12v 0.5a 13.5v ts-1012c 11V 32v ac/dc power adapter charger supply   1)professional manufacturer who provide different plug, voltage, current, dimension Power Adapter
2) specialized in the R&D and manufacture power supply with 15 years experience Product Description   Wide voltage input AC100-240VAC Production:short/ circuit/ over voltage 100% Full load test Pass CE/UL/GS/PSE/KC/CCC/SAA 3-year warranty  For Examples: 12V 1A

Input		Over load	130%-150%
Voltage range	100-240VAC	Over voltage	115%-135%
Frequency range	47/63Hz	Environment
Efficient	78%	Working temp	0-40℃
AC current(max)	1.5A	Working humidity	20%-90%RH
Peak load current	40A/230V	Storage temp humidity	-40-80℃
Output		Safety & EMC
Voltage	12VDC+/- 5%	Safety standard	CE FCC RoHS
Rated current	1.0A	Withstand voltage	5mA 3.75KV
Rated power	12W	Isolated resistance	100M ohms
Ripple& noise	<150mV	Others
Lad regulations	+/-3%	Dimension	74*40*30.5mm
Startup. rise. hold up time.	100V/3m 100ms 10ms
		Weight	***
Protection		DC Output Type	5.5*2.1*10mm
Short circuit  protection	yes	DC line	1.83m

  1) Protection: Over current protection, short circuit protection, OTP over voltage protection
2) HI-POT test: Passed American production according to 2000VAC, Other Production according to 3000VAC
3) Insulation resistance: 500VAC between input and output.it's more than 50Mohm.
4) Temperature rise: Test at surface of the dut case with typical input voltage and typical load. Temperature rise meet safety approvaled at the surface of the dut case.
5) Burn-in: Typical input voltage and typical load current in 4 hours, NO damage.
6) MTBF: MIL-HDBK-217F, full load 25 It's more than 20000 hours.
7) ESD: direct: 4KV, air: 8KV, No damage.
8) Surge:1KV No damage
9) Bending test: Wire shall withstand weight of 200g, It swing from left to right at an angle 60DEG, 1000 cycle times. Min. Bending speed 10 cycle/Minute.

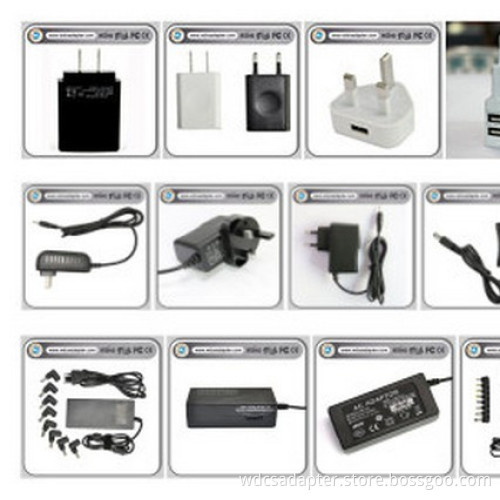

10) Drop test: Drop the charge from 1.0m height onto a concrete floor, hiting the charge 6times with every surface 1 time no damage.   All the products obtained certificates show:    Packaging & Shipping  Each piece in white box with sticker  100pcs in master carton W/N Ylon bag We can produce the color box for the customer with customer's design. Our Services  We have our own design and engineer team, so we can prouduce all  kinds of power supply, ac/dc adapters for your products according to your technology specifications.   Other products show:( In order to meet the more needs of customers request, we have more our unique design) Can be free regulate the voltage loptop power adapter
Multi-function laptop adapter with  digital readout, If you are interested, please feel free to contact me contact: Winnie skype ID : winner2370 web link : https://wdcsadapter.com/en/ Company Information About  Wang Dong Chang Sheng Electronics Co.,Ltd

With 10 years history Wang Dong Chang Sheng Electronics Co.,Ltd  is a long-term dedicates ingo research and development of all types professional, personalized power converters for the brand consumer electronic products. All the products can comply with worldwide safety requirements. The domestic and overseas market occupancy volume of our products increased steadily in those ten years. The company is headquartered in Baoan district ,Shenzhen , and it has 3000m²production base, more than 200 employees It also have the first-class hardware facilities, elegant office environment and advanced equipments and a large number of outstanding professional talents. For the more, it have got the qualification certificate of the national high-tech enterprise.
